Part Image

MAX208CAG+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX208CAG+ - Transceiver RS232, 4.5V-5.5V supply, 4 Drivers, SSOP-24

Download MAX208CAG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

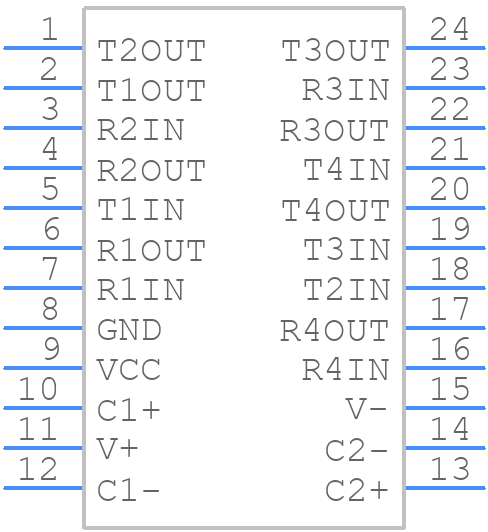

MAX208CAG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX208CAG+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - A24+3
click to zoom
3D Models
MAX208CAG+ - Analog Devices - 3D model - Small Outline Packages - A24+3
click to zoom

MAX208CAG+ Details

  • Manufacturer Part Number:

    MAX208CAG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-SSOP-5.3_MM

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-02-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    EXTERNAL CHARGE PUMP

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; TIA-232-E; V.28

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    TOTEM-POLE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    10000 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX208CAG+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX208CAG+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and away from each other.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC before applying any input signals. Also, ensure that the VCC pin is decoupled with a 0.1uF capacitor and that the device is operated within the recommended operating temperature range.
  • The maximum input signal amplitude that the MAX208CAG+ can handle without distortion is typically around 2Vpp, but this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
  • The MAX208CAG+ is rated for operation up to 125°C, but it's recommended to derate the device's performance and power consumption at higher temperatures. Additionally, it's important to ensure that the device is properly heat-sinked and that the PCB is designed to handle high temperatures.
  • To troubleshoot common issues with the MAX208CAG+, start by checking the power supply and ensuring that it's clean and stable. Next, verify that the input and output signals are within the recommended ranges and that the device is properly configured. If the issue persists, consult the datasheet and application notes for troubleshooting guides and consider using simulation tools or seeking support from Analog Devices Inc.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX208CAG+ Overview

Use the download button to access the MAX208CAG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX20, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
