MAX211EAI+ - Analog Devices

Description: Maxim MAX211EAI+, Line Transceiver, CCITT V.28/ EIA/TIA-232-E 4-TX 5-RX 4-TRX, 4.5 → 5.5 V, 28-Pin SSOP

Download MAX211EAI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

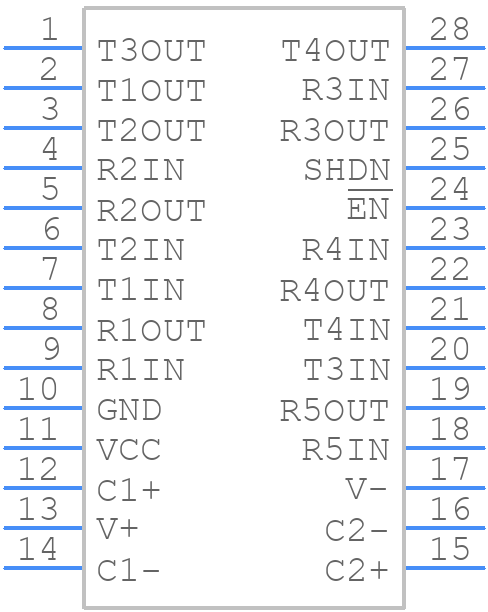

MAX211EAI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX211EAI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - A28-1
click to zoom
3D Models
MAX211EAI+ - Analog Devices - 3D model - Small Outline Packages - A28-1
click to zoom

MAX211EAI+ Details

  • Manufacturer Part Number:

    MAX211EAI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SSOP-5.3_MM

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-02-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    TRISTATABLE RECEIVERS; EXTERNAL CHARGE PUMP

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; TIA-232-E; V.28

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    10000 ns

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX211EAI+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX211EAI+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the device and the power supply. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes to ensure optimal performance.
  • To optimize the performance of the MAX211EAI+ in a noisy environment, it's essential to use proper shielding, grounding, and filtering techniques. Use a shielded enclosure, and ensure that the device is placed away from noise sources. Implement a low-pass filter on the input signals, and use a ferrite bead or a common-mode choke to filter out high-frequency noise. Additionally, consider using a separate analog power supply and decoupling capacitors to reduce noise coupling.
  • The MAX211EAI+ has an operating temperature range of -40°C to +125°C. However, it's essential to note that the device's performance may degrade at extreme temperatures. It's recommended to operate the device within the recommended temperature range to ensure optimal performance and reliability.
  • The MAX211EAI+ is a commercial-grade device, and it may not meet the requirements for high-reliability or safety-critical applications. However, Analog Devices Inc offers a range of industrial-grade and automotive-grade devices that are designed for high-reliability and safety-critical applications. It's essential to consult with Analog Devices Inc or a qualified engineer to determine the suitability of the device for a specific application.
  • To troubleshoot common issues with the MAX211EAI+, start by checking the power supply voltage, input signals, and output signals. Verify that the device is properly configured and that the input signals are within the recommended range. Check for noise, distortion, or oscillations on the output signals. Consult the datasheet, application notes, and evaluation boards for guidance on troubleshooting and debugging. If the issue persists, contact Analog Devices Inc or a qualified engineer for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX211EAI+ Overview

Use the download button to access the MAX211EAI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX21, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
