MAX211EEAI+T - Analog Devices

Description: ±15kV ESD-Protected, +5V RS-232 Transceivers

Download MAX211EEAI+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

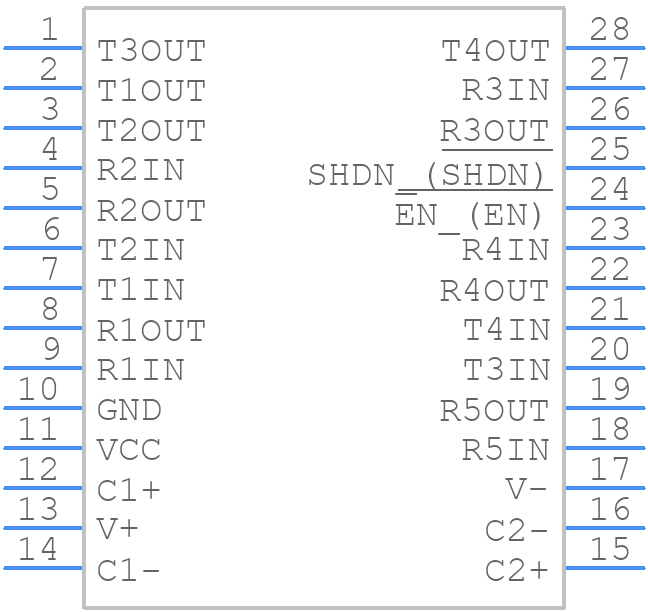

PCB Footprints
MAX211EEAI+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX211EEAI+Taa
click to zoom
3D Models
MAX211EEAI+T - Analog Devices  - 3D model - Small Outline Packages - MAX211EEAI+Taa
click to zoom

MAX211EEAI+T Details

  • Manufacturer Part Number:

    MAX211EEAI+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SSOP-5.3_MM

  • Package Description:

    5.30 MM, MO-150, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SSOP-5.3_MM

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1995-09-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    TRISTATABLE RECEIVERS; EXTERNAL CHARGE PUMP

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; TIA-232-E; V.28

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    10000 ns

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX211EEAI+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX211EEAI+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling and to place it as close as possible to the device.
  • To ensure proper power-up and power-down of the MAX211EEAI+T, it's recommended to follow a sequential power-up sequence, where the analog power supply (VCC) is powered up before the digital power supply (VDD). During power-down, the sequence should be reversed. Additionally, it's recommended to use a power-on reset (POR) circuit to ensure the device is properly reset during power-up.
  • The maximum allowable input voltage for the MAX211EEAI+T is 5.5V, which is the absolute maximum rating. However, the recommended maximum input voltage is 5V to ensure optimal performance and to prevent damage to the device.
  • The MAX211EEAI+T has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap or mat, storing the devices in anti-static packaging, and avoiding direct contact with the device pins.
  • The thermal resistance of the MAX211EEAI+T package (TQFN-EP) is typically around 30°C/W (junction-to-ambient) and 10°C/W (junction-to-case). This information can be used to estimate the device junction temperature and to design a suitable thermal management system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX211EEAI+T Overview

Use the download button to access the MAX211EEAI+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX21, or try a keyword search, such as Line Driver or Receivers
