MAX211EEWI+ - Analog Devices

Description: IC TRANSCEIVER FULL 4/5 28SOIC

Download MAX211EEWI+ Model

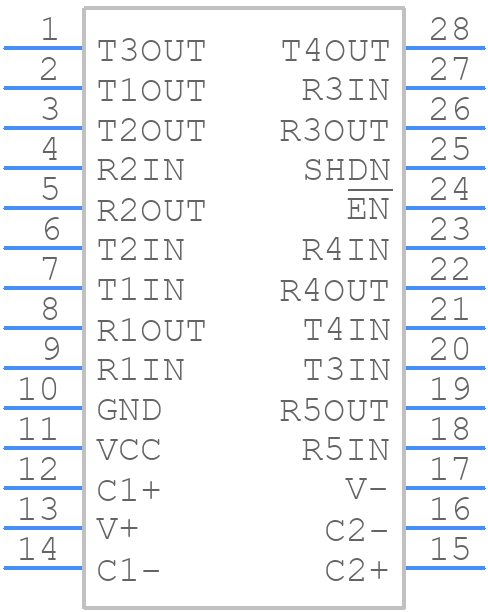

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX211EEWI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-SOIC_W-300_MIL-4
click to zoom
3D Models
MAX211EEWI+ - Analog Devices  - 3D model - Small Outline Packages - 28-SOIC_W-300_MIL-4
click to zoom

MAX211EEWI+ Details

  • Manufacturer Part Number:

    MAX211EEWI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SOIC_W-300_MIL

  • Package Description:

    0.300 INCH, MS-013, SO-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1995-09-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    TRISTATABLE RECEIVERS; EXTERNAL CHARGE PUMP

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; TIA-232-E; V.28

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    10000 ns

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX211EEWI+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX211EEWI+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power and decoupling, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins, and use a 10kΩ resistor in series with the power supply to prevent voltage spikes.
  • The MAX211EEWI+ can handle input signal amplitudes up to 2.5Vpp (peak-to-peak) without distortion or clipping. However, it's recommended to keep the input signal amplitude below 2Vpp to ensure optimal performance and prevent potential damage to the device.
  • To optimize noise performance, set the gain to the minimum required value, use a low-pass filter at the input, and ensure the device is operated within its recommended temperature range. Additionally, use a shielded enclosure and keep the device away from noise sources such as motors and switching power supplies.
  • The typical settling time of the MAX211EEWI+ is around 10μs to 20μs, depending on the gain setting and input signal frequency. However, this can vary depending on the specific application and operating conditions.
