MAX22164CAEE+ - Analog Devices

Description: Reinforced, Fast, Low-Power, Six-Channel Digital Isolators

Download MAX22164CAEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

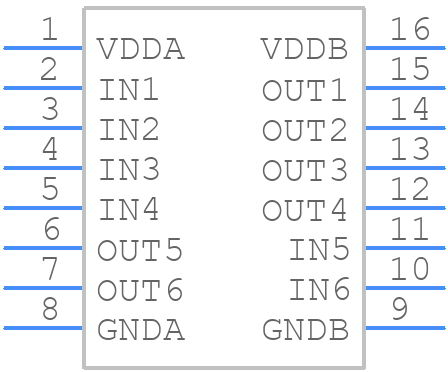

MAX22164CAEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

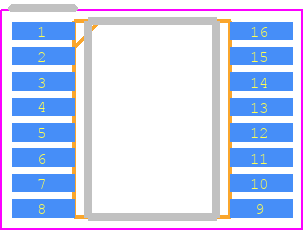

MAX22164CAEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16MS+2
click to zoom
3D Models
MAX22164CAEE+ - Analog Devices - 3D model - Small Outline Packages - E16MS+2
click to zoom

MAX22164CAEE+ Details

  • Manufacturer Part Number:

    MAX22164CAEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2021-12-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.89 mm

MAX22164CAEE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX22164CAEE+ can be found in the MAX22164 Evaluation Kit documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the device's datasheet.
  • To optimize the performance of the MAX22164CAEE+, it's recommended to follow the application notes and design guidelines provided by Analog Devices. Additionally, engineers can consult with Analog Devices' technical support team or use simulation tools such as SPICE models to optimize their design.
  • The MAX22164CAEE+ has a maximum junction temperature of 150°C. To ensure reliable operation, engineers should follow proper thermal management practices, such as providing adequate heat sinking, using thermal vias, and minimizing thermal resistance. The device's thermal characteristics can be found in the datasheet.
  • The MAX22164CAEE+ is a robust device, but it's still important to follow proper design and assembly practices to ensure reliability in high-vibration or high-shock environments. Engineers should consult with Analog Devices' technical support team or refer to the device's reliability report for guidance.
  • To troubleshoot issues with the MAX22164CAEE+, engineers can refer to the device's datasheet and application notes, as well as Analog Devices' technical support resources, such as FAQs, knowledge base articles, and online forums. Additionally, engineers can use debugging tools such as oscilloscopes and logic analyzers to identify and diagnose issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX22164CAEE+ Overview

Use the download button to access the MAX22164CAEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX22, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
