MAX22164FAEE+ - Analog Devices

Description: Reinforced, Fast, Low-Power, Six-Channel Digital Isolators

Download MAX22164FAEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

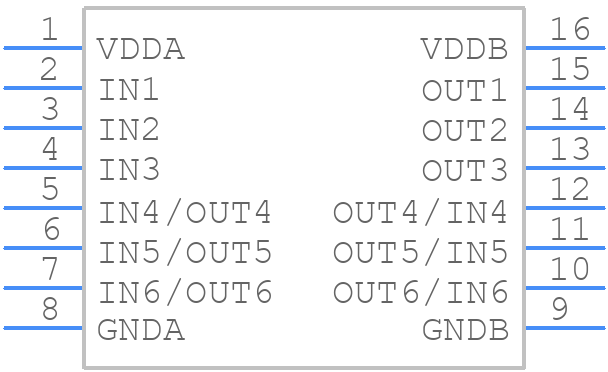

MAX22164FAEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

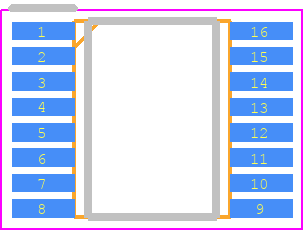

MAX22164FAEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-QSOP-150_MIL_2023
click to zoom
3D Models
MAX22164FAEE+ - Analog Devices - 3D model - Small Outline Packages - 16-QSOP-150_MIL_2023
click to zoom

MAX22164FAEE+ Details

  • Manufacturer Part Number:

    MAX22164FAEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2021-12-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.89 mm

MAX22164FAEE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX22164FAEE+ can be found in the MAX22164 Evaluation Kit documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the device's datasheet.
  • To ensure reliable operation of the MAX22164FAEE+ in high-temperature environments, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, the device's thermal shutdown feature can be enabled to prevent damage from overheating.
  • The recommended input filter configuration for the MAX22164FAEE+ involves using a pi-filter (C-R-C) or a T-filter (L-C-R) to attenuate high-frequency noise and ensure electromagnetic compatibility (EMC). The filter component values can be calculated using the device's datasheet and application notes.
  • To troubleshoot common issues with the MAX22164FAEE+, engineers can follow a systematic approach, starting with checking the power supply, input voltage, and output voltage. They can also use oscilloscopes and logic analyzers to monitor the device's behavior and identify potential issues. Analog Devices provides a troubleshooting guide in the device's datasheet and application notes.
  • When selecting output capacitors for the MAX22164FAEE+, engineers should consider factors such as capacitance value, equivalent series resistance (ESR), and voltage rating. The output capacitor should be able to handle the output current and voltage ripple, and its ESR should be low enough to ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX22164FAEE+ Overview

Use the download button to access the MAX22164FAEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX22, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
