MAX22166CAEE+ - Analog Devices

Description: Reinforced, Fast, Low-Power, Six-Channel Digital Isolators

Download MAX22166CAEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

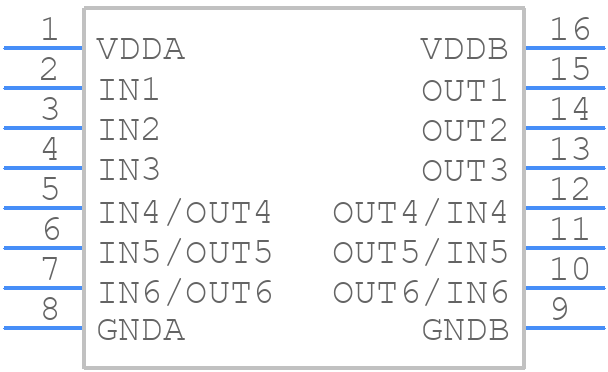

MAX22166CAEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22166CAEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16MS+2
click to zoom
3D Models
MAX22166CAEE+ - Analog Devices - 3D model - Small Outline Packages - E16MS+2
click to zoom

MAX22166CAEE+ Details

  • Manufacturer Part Number:

    MAX22166CAEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2021-12-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.89 mm

MAX22166CAEE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX22166CAEE+ can be found in the MAX22166 Evaluation Kit documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for signal integrity and thermal management.
  • To optimize the performance of the MAX22166CAEE+ in high-temperature environments, ensure proper thermal management by providing adequate heat sinking, using a thermally conductive PCB material, and minimizing thermal resistance between the device and the heat sink. Additionally, consider using a thermal interface material (TIM) to improve heat transfer. It's also essential to follow the recommended operating conditions and derating guidelines provided in the datasheet.
  • The recommended input filter configuration for the MAX22166CAEE+ involves using a pi-filter (C-R-C) or a T-filter (L-C-R) topology to attenuate high-frequency noise and ensure electromagnetic compatibility (EMC). The specific component values and filter topology may vary depending on the application and noise environment. Analog Devices provides guidance on input filter design in the datasheet and application notes.
  • To troubleshoot common issues with the MAX22166CAEE+, start by reviewing the datasheet and application notes for guidance on typical fault scenarios and troubleshooting procedures. Use oscilloscopes and logic analyzers to capture waveforms and debug communication protocols. Check for proper power supply decoupling, signal integrity, and thermal management. If issues persist, contact Analog Devices' technical support for further assistance.
  • To ensure electromagnetic compatibility (EMC) with the MAX22166CAEE+, follow proper PCB layout and design practices, such as separating analog and digital circuits, using shielding, and minimizing loop areas. Implement proper filtering and decoupling, and consider using a metal shield or enclosure to reduce electromagnetic radiation. Additionally, ensure compliance with relevant EMC standards and regulations, such as CISPR and FCC.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX22166CAEE+ Overview

Use the download button to access the MAX22166CAEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX22, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
