MAX22195ATJ+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX22195ATJ+ - DIGITAL I/P TRANSLATOR, -40 TO 125DEG C

Download MAX22195ATJ+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

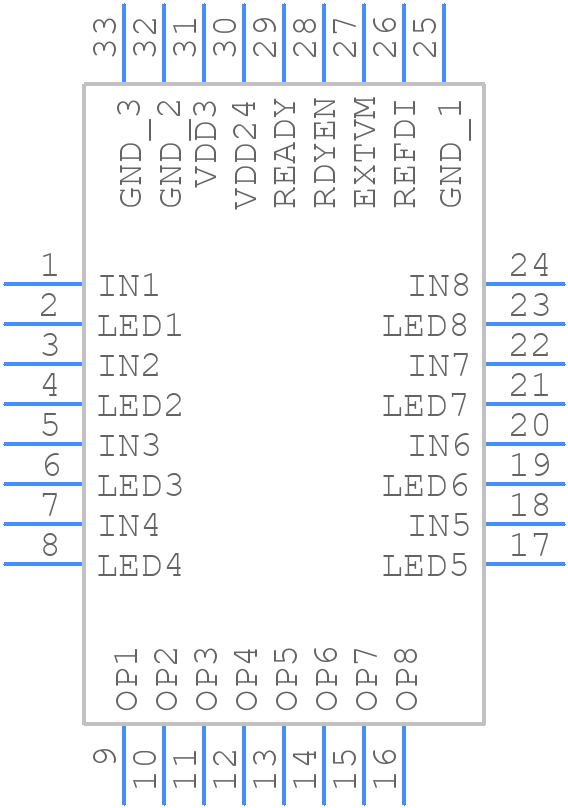

MAX22195ATJ+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22195ATJ+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX22195ATJ+-1
click to zoom
3D Models
MAX22195ATJ+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX22195ATJ+-1
click to zoom

MAX22195ATJ+ Details

  • Manufacturer Part Number:

    MAX22195ATJ+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-09-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL I/P MODULE

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    IEC 61131-2

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX22195ATJ+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX22195ATJ+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a common mode choke and a shielded cable for the CAN bus lines.
  • To ensure EMC with the MAX22195ATJ+, it's recommended to follow proper PCB design and layout guidelines, use a shielded enclosure, and add EMI filters and shielding to the CAN bus lines. Additionally, the device should be placed in a location that minimizes exposure to electromagnetic interference.
  • The maximum cable length supported by the MAX22195ATJ+ is dependent on the specific application and the type of cable used. However, as a general guideline, the maximum cable length should not exceed 40 meters for a 500 kbps CAN bus system.
  • To troubleshoot CAN bus communication issues with the MAX22195ATJ+, it's recommended to use a CAN bus analyzer tool to monitor the bus activity, check the termination resistors, and verify the correct configuration of the device. Additionally, ensure that the power supply and ground connections are stable and clean.
  • The MAX22195ATJ+ is compatible with other CAN bus transceivers that comply with the ISO 11898-2 standard. However, it's recommended to verify the compatibility of the specific transceiver with the MAX22195ATJ+ before using them in the same system.
