MAX221EEUE+ - Analog Devices

Description: ±15kV ESD-Protected, +5V, 1µA, Single RS-232 Transceiver with AutoShutdown

Download MAX221EEUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

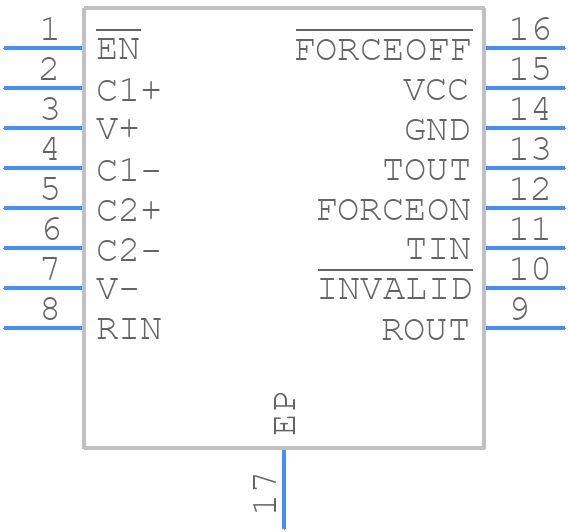

MAX221EEUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX221EEUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0108 (TSSOP+EP)
click to zoom
3D Models
MAX221EEUE+ - Analog Devices - 3D model - Small Outline Packages - 21-0108 (TSSOP+EP)
click to zoom

MAX221EEUE+ Details

  • Manufacturer Part Number:

    MAX221EEUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    4.40 MM, 0.65 MM PITCH, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-08-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; V.28

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0032 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX221EEUE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX221EEUE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the isolation barrier. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the MAX221EEUE+ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range (-40°C to +125°C).
  • The MAX221EEUE+ is rated for 2500Vrms isolation, but if the system requires a different isolation voltage rating, it's essential to ensure that the device is used within its specified isolation rating. Using the device in a system with a higher isolation voltage rating may not be a concern, but using it in a system with a lower isolation voltage rating may compromise the isolation barrier and affect the device's performance and reliability.
  • To troubleshoot issues with the MAX221EEUE+, start by verifying that the device is properly powered and that the input and output signals are within the specified voltage ranges. Check for proper PCB layout and routing, and ensure that the device is not overheating. Use an oscilloscope to verify the signal integrity and check for any signs of noise or distortion. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
  • Yes, the MAX221EEUE+ is UL recognized (UL 1577) and can be used in designs that require UL certification. However, it's essential to ensure that the device is used within its specified ratings and that the design meets all the necessary safety and regulatory requirements.
