MAX22211AUI+T - Analog Devices

Description: 36V, 3.8A Two H-Bridge for Dual Brushed or Single Stepper Motor Drive

Download MAX22211AUI+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

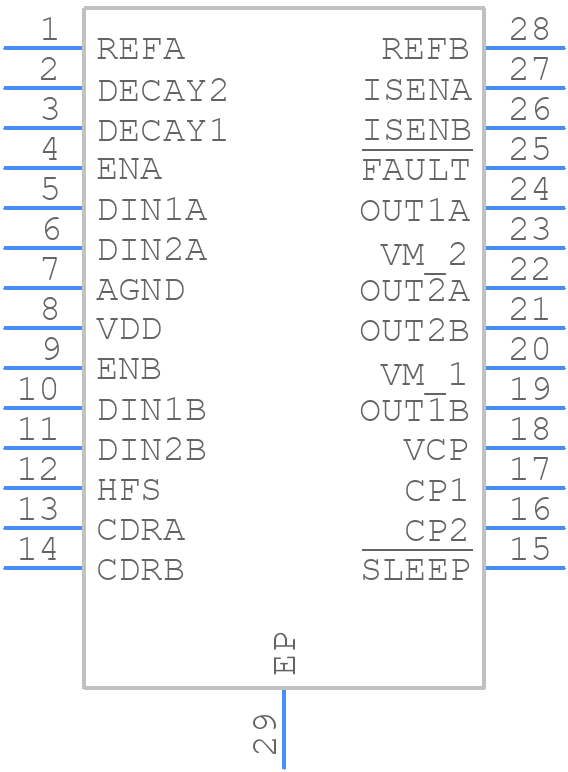

MAX22211AUI+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22211AUI+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX22211AUI+T
click to zoom
3D Models
MAX22211AUI+T - Analog Devices - 3D model - Small Outline Packages - MAX22211AUI+T
click to zoom

MAX22211AUI+T Details

  • Manufacturer Part Number:

    MAX22211AUI+T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX22211AUI+T Overview

Use the download button to access the MAX22211AUI+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX22, or try a keyword search, such as Motion Control Electronics
