MAX22245FAWA+ - Analog Devices

Description: Reinforced, Fast, Low-Power, Two-Channel Digital Isolators, 8-Wide-SOIC

Download MAX22245FAWA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

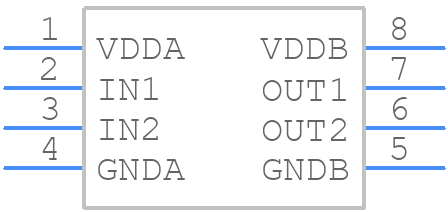

MAX22245FAWA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22245FAWA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W8MS+5_2020-1
click to zoom
3D Models
MAX22245FAWA+ - Analog Devices - 3D model - Small Outline Packages - W8MS+5_2020-1
click to zoom

MAX22245FAWA+ Details

  • Manufacturer Part Number:

    MAX22245FAWA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_W-300_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-09-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

MAX22245FAWA+ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX22245FAWA+. Ensure a solid ground plane, keep the input and output traces short and separate, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
  • The input capacitor value depends on the input voltage, frequency, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating higher than the input voltage. Consult the datasheet and application notes for more specific guidance.
  • The MAX22245FAWA+ can deliver up to 2A of output current, but this depends on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet's current limit curves and thermal derating charts to ensure safe operation.
  • The MAX22245FAWA+ has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. This allows the device to shut down when the output voltage exceeds a predetermined threshold. Consult the datasheet and application notes for more information.
  • The EN (enable) pin is used to turn the device on or off. Connect the EN pin to a logic signal (e.g., from a microcontroller) to enable or disable the device. When EN is low, the device is in shutdown mode, and when EN is high, the device is enabled.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX22245FAWA+ Overview

Use the download button to access the MAX22245FAWA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX22, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
