MAX222CWN+ - Analog Devices

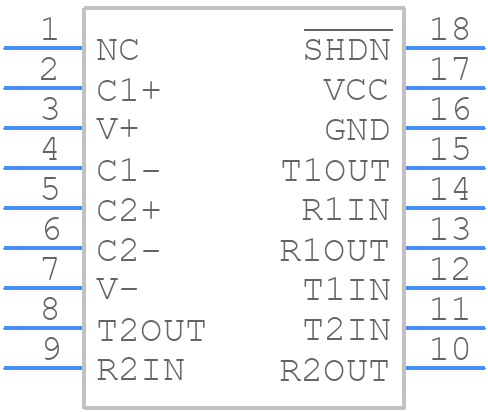

MAX222CWN+ Details

• Manufacturer Part Number:

  MAX222CWN+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  18-SOIC_W-300_MIL

• Package Description:

  SOP-18

• Pin Count:

  18

• Manufacturer Package Code:

  18-SOIC_W-300_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1998-06-25

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  EXTERNAL CHARGE PUMP

• Differential Output:

  NO

• Driver Number of Bits:

  2

• High Level Input Current-Max:

  0.00004 A

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-232-E; TIA-232-E; V.28; V.24

• JESD-30 Code:

  R-PDSO-G18

• JESD-609 Code:

  e3

• Length:

  11.55 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  2

• Number of Terminals:

  18

• Operating Temperature-Max:

  70 °C

• Out Swing-Min:

  10 V

• Output Characteristics:

  3-STATE

• Output Low Current-Max:

  0.0032 A

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP18,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Receive Delay-Max:

  1000 ns

• Receiver Number of Bits:

  2

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  10 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transmit Delay-Max:

  3500 ns

• Width:

  7.5 mm
