MAX22501EATA+T - Analog Devices

Description: 100Mbps Half-Duplex RS-485/RS-422 Transceivers for Long Cables

Download MAX22501EATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

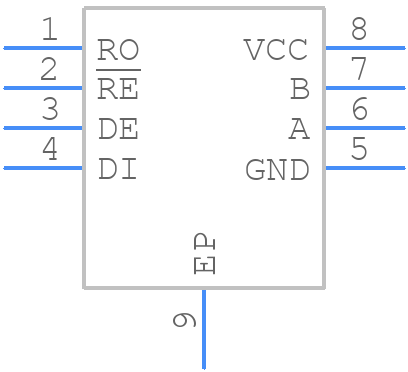

MAX22501EATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22501EATA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T833+2
click to zoom
3D Models
MAX22501EATA+T - Analog Devices - 3D model - Small Outline No-lead - T833+2
click to zoom

MAX22501EATA+T Details

  • Manufacturer Part Number:

    MAX22501EATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00135 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; TIA-422; EIA-485; TIA-485

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.02 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    20 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    5.6 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.6 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    20 ns

  • Width:

    3 mm

MAX22501EATA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX22501EATA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • The MAX22501EATA+T requires a single 3.3V power supply. It's recommended to power the device using a low-noise, low-dropout regulator. The power sequencing requirements are not critical, but it's recommended to power the device after the input signals are stable to prevent any potential latch-up conditions.
  • The MAX22501EATA+T can support data rates up to 100Mbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal integrity.
  • To troubleshoot issues with the MAX22501EATA+T, start by verifying the power supply and input signals. Use an oscilloscope to check the signal integrity and ensure that the device is properly powered. Check the datasheet for any specific troubleshooting guidelines and consult with Analog Devices' support resources if necessary.
  • The MAX22501EATA+T has a maximum junction temperature of 150°C. While it doesn't require a heat sink, it's recommended to provide adequate thermal relief and ensure good airflow around the device to prevent overheating. A thermal pad or heat sink can be used if the device is expected to operate in high-temperature environments.
