Please enter a minimum 3 letters or numbers
Technical Content
Part Image

MAX22503EASD+ - Analog Devices

Description: RS-422/RS-485 Interface IC High Speed Half-Duplex RS-485/RS-422 Transceiver

Download MAX22503EASD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

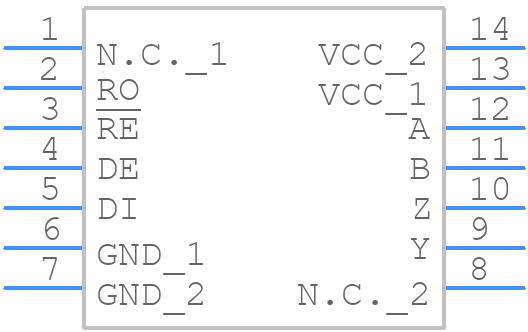

MAX22503EASD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22503EASD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14-Pin SOIC
click to zoom
3D Models
MAX22503EASD+ - Analog Devices - 3D model - Small Outline Packages - 14-Pin SOIC
click to zoom

MAX22503EASD+ Details

  • Manufacturer Part Number:

    MAX22503EASD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-SOIC_N-150_MIL

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-09-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.02 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Receive Delay-Max:

    20 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    16.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    20 ns

  • Width:

    3.9 mm

MAX22503EASD+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX22503EASD+ can be found in the MAX22503 Evaluation Kit documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for optimal performance.
  • To optimize the performance of the MAX22503EASD+, it's essential to follow the recommended layout and component selection guidelines in the datasheet. Additionally, consider the specific requirements of your application, such as signal frequency, amplitude, and impedance, and adjust the component values and layout accordingly. You may also want to consult with Analog Devices' application engineers or seek guidance from experienced designers who have worked with similar devices.
  • The MAX22503EASD+ has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as heat sinking, thermal vias, and adequate airflow. The datasheet provides thermal resistance values (θJA and θJC) that can be used to estimate the junction temperature. Additionally, consider using thermal simulation tools to model the thermal performance of your design.
  • To troubleshoot issues with the MAX22503EASD+, start by reviewing the datasheet and application notes to ensure that the device is being used within its recommended operating conditions. Check the power supply, signal integrity, and PCB layout for any potential issues. Use oscilloscopes, signal generators, and other diagnostic tools to isolate the problem. If necessary, consult with Analog Devices' application engineers or seek guidance from experienced designers who have worked with similar devices.
  • The MAX22503EASD+ has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Ensure that your PCB design includes ESD protection devices, such as TVS diodes or ESD arrays, to protect the device from external ESD events. Additionally, follow the recommended handling and storage procedures outlined in the datasheet to prevent ESD damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX22503EASD+ Overview

Use the download button to access the MAX22503EASD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX22, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to MAX22503EASD+

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
