MAX22513ATI+ - Analog Devices

Description: Sensor Interface Dual Driver IO-Link Device Transceiver with EMC Protection and DC/DC

Download MAX22513ATI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

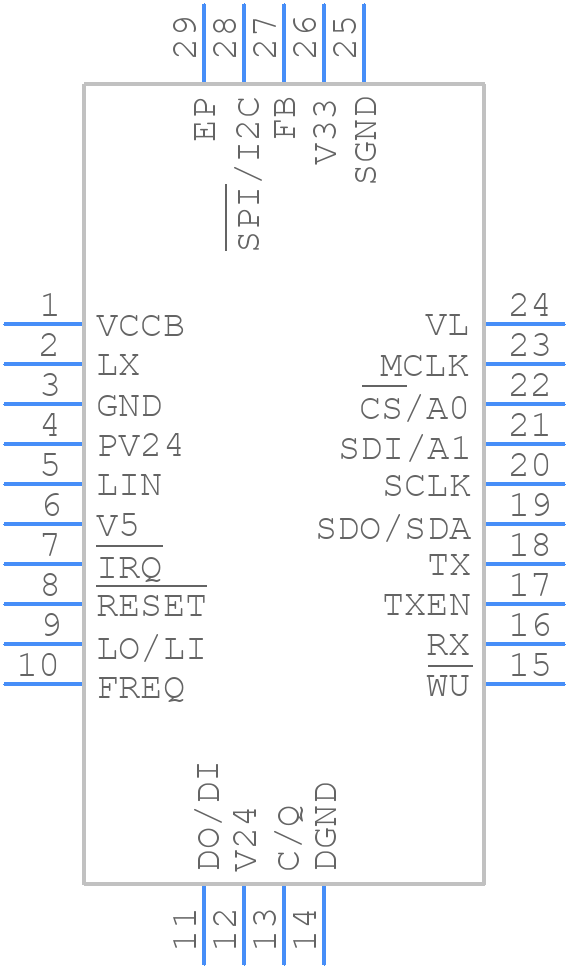

Symbol
MAX22513ATI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22513ATI+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX22513ATI+
click to zoom
3D Models
MAX22513ATI+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX22513ATI+
click to zoom

MAX22513ATI+ Details

  • Manufacturer Part Number:

    MAX22513ATI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP-3.5X5.5X0.75

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP-3.5X5.5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-03-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    IO-LINK TRANSCIEVERS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX22513ATI+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX22513ATI+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper powering and decoupling of the MAX22513ATI+, use a high-quality power supply with low noise and ripple. Decouple the device with a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed close to the device. Additionally, use a 1uF ceramic capacitor to decouple the VCC pin. Make sure to follow the power-up and power-down sequencing guidelines provided in the datasheet.
  • The MAX22513ATI+ has an operating temperature range of -40°C to +125°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
  • To troubleshoot issues with the MAX22513ATI+, start by verifying the power supply and decoupling. Check for proper power-up and power-down sequencing, and ensure that the input and output signals are within the specified ranges. Use an oscilloscope to check for signal integrity and noise. If the issue persists, consult the datasheet and application notes, and contact Analog Devices' technical support if necessary.
  • The MAX22513ATI+ is a high-reliability device, but it's essential to follow the guidelines and recommendations provided in the datasheet and application notes to ensure its safe and reliable operation in safety-critical applications. Additionally, consult with Analog Devices' technical support and follow the relevant industry standards and regulations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX22513ATI+ Overview

Use the download button to access the MAX22513ATI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX22, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
