MAX22702EASA+ - Analog Devices

Description: Gate Drivers Ultra-High CMTI Silicon-Carbide (SiC) gate driver

Download MAX22702EASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

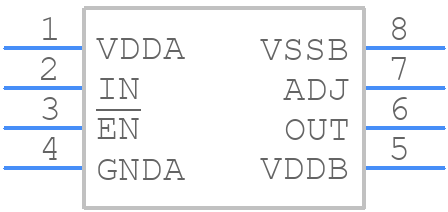

Symbol
MAX22702EASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22702EASA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8MS+23
click to zoom
3D Models
MAX22702EASA+ - Analog Devices - 3D model - Small Outline Packages - S8MS+23
click to zoom

MAX22702EASA+ Details

  • Manufacturer Part Number:

    MAX22702EASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-11-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    5.7 A

  • Output Polarity:

    TRUE AND INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    28 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    20 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.039 µs

  • Turn-on Time:

    0.039 µs

  • Width:

    3.9 mm

MAX22702EASA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX22702EASA+ involves keeping the high-frequency signals away from the low-frequency signals, using a solid ground plane, and minimizing the length of the traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To optimize the performance of the MAX22702EASA+, it's essential to follow the recommended operating conditions, such as supply voltage, temperature range, and input signal levels. Additionally, the device's performance can be optimized by selecting the appropriate gain setting, adjusting the input impedance, and using a suitable output load. It's also recommended to use a low-noise power supply and to minimize the noise coupling into the device.
  • The maximum operating frequency of the MAX22702EASA+ is 6 GHz. However, the device's performance may degrade at higher frequencies, and it's recommended to consult the datasheet for more information on the device's frequency response.
  • The MAX22702EASA+ is rated for operation up to 125°C. However, the device's performance may degrade at higher temperatures, and it's recommended to consult the datasheet for more information on the device's temperature characteristics. Additionally, it's essential to ensure that the device is properly cooled and that the operating conditions are within the recommended specifications.
  • To troubleshoot issues with the MAX22702EASA+, it's essential to follow a systematic approach. First, verify that the device is properly powered and that the input signals are within the recommended specifications. Next, check the output signals using an oscilloscope or a spectrum analyzer. If the issue persists, consult the datasheet and the application notes for more information on troubleshooting common issues. It's also recommended to contact Analog Devices' technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX22702EASA+ Overview

Use the download button to access the MAX22702EASA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX22, or try a keyword search, such as MOSFET Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
