MAX233ACPP+G36 - Analog Devices

Description: Maxim MAX233ACPP+G36, Dual Line Transceiver, RS-232 2-TX 2-RX, 4.5 → 5.5 V, 20-Pin PDIP

Download MAX233ACPP+G36 Model

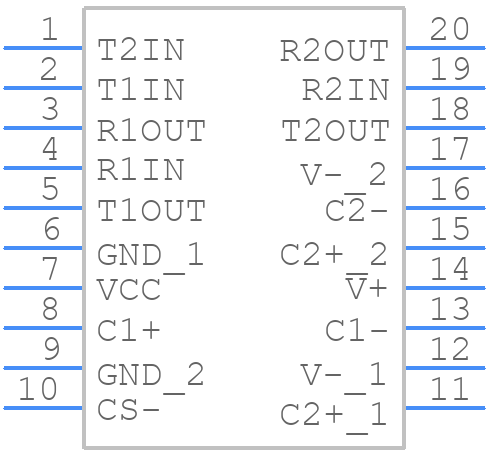

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

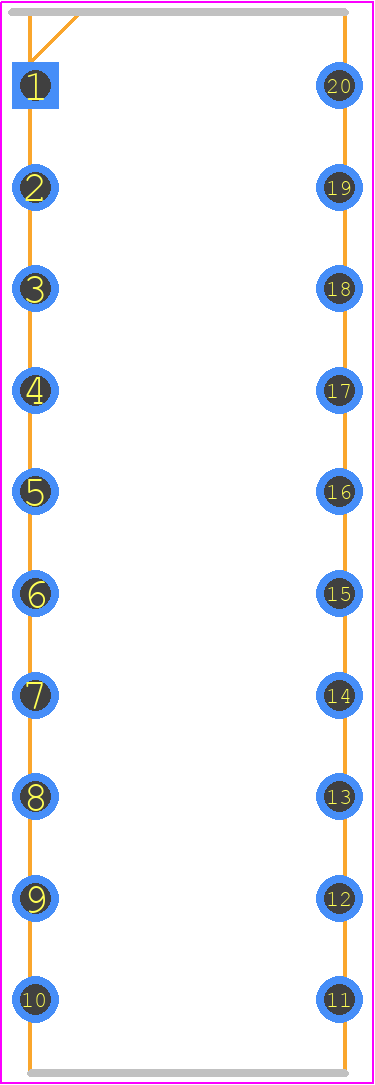

MAX233ACPP+G36 - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P20+3
click to zoom
3D Models
MAX233ACPP+G36 - Analog Devices  - 3D model - Dual-In-Line Packages - P20+3
click to zoom

MAX233ACPP+G36 Details

  • Manufacturer Part Number:

    MAX233ACPP+G36

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-PDIP-300_MIL

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-06-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    EXTERNAL CHARGE PUMP

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; TIA-232-E; V.28; V.24

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    26.16 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0032 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    225

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    10000 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Transmit Delay-Max:

    10000 ns

  • Width:

    7.62 mm

MAX233ACPP+G36 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX233ACPP+G36 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a shielded cable for the RS-232 interface and to keep the device away from high-frequency sources.
  • To ensure reliable operation of the MAX233ACPP+G36 in high-temperature environments, it's recommended to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range of -40°C to +85°C.
  • When using the MAX233ACPP+G36 in a system with multiple power domains, it's essential to ensure that the device is powered from a single power domain to avoid latch-up or other reliability issues. Additionally, the device's power supply pins should be decoupled from the system's power supply pins using capacitors to minimize noise and voltage droop.
  • To troubleshoot issues with the MAX233ACPP+G36, it's recommended to follow a systematic approach, starting with checking the device's power supply, clock, and reset signals. Then, verify the device's configuration and settings, and check for any signs of physical damage or overheating. Finally, use a logic analyzer or oscilloscope to capture and analyze the device's signals and data transmission.
  • When using the MAX233ACPP+G36 in a system with limited power supply current, it's essential to ensure that the device's power supply current is within the specified limits. This can be achieved by using a low-dropout regulator, minimizing the device's operating frequency, and using power-saving modes when possible. Additionally, the device's power-down mode can be used to reduce power consumption when the device is not in use.
