MAX233CPP+G36 - Analog Devices

Description: Dual RS-232 Driver/Receiver 5V PDIP20 Maxim MAX233CPP+G36, Dual Line Transceiver, RS-232 2-TX 2-RX, 4.5 → 5.5 V, 20-Pin PDIP

Download MAX233CPP+G36 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

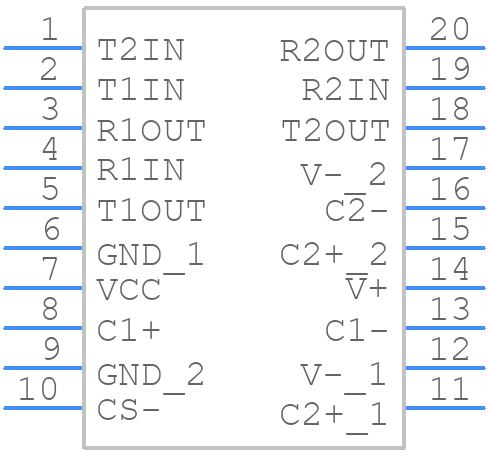

MAX233CPP+G36 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

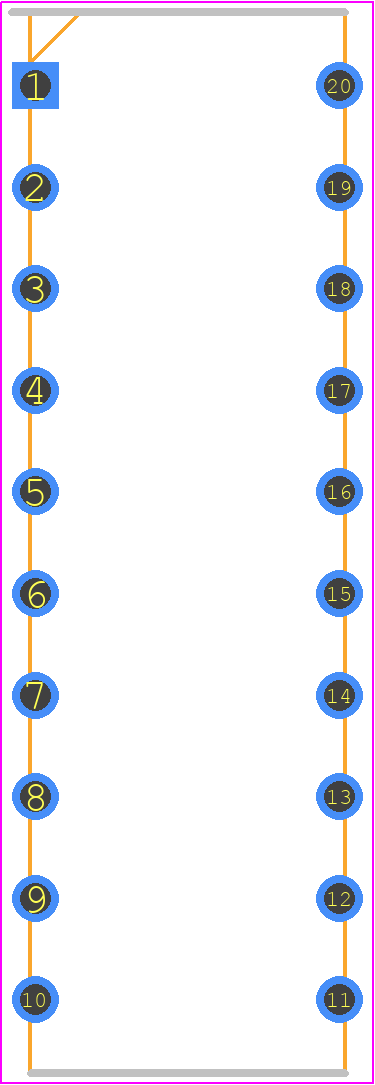

MAX233CPP+G36 - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 20 PDIP
click to zoom
3D Models
MAX233CPP+G36 - Analog Devices - 3D model - Dual-In-Line Packages - 20 PDIP
click to zoom

MAX233CPP+G36 Details

  • Manufacturer Part Number:

    MAX233CPP+G36

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-PDIP-300_MIL

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-06-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    INTERNAL CHARGE PUMP

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; TIA-232-E; V.28; V.24

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    26.16 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0032 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    225

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    10000 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Transmit Delay-Max:

    10000 ns

  • Width:

    7.62 mm

MAX233CPP+G36 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX233CPP+G36 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the MAX233CPP+G36 in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range of -40°C to +85°C.
  • The maximum data rate that can be achieved with the MAX233CPP+G36 is 250 kbps, as specified in the datasheet. However, the actual data rate may be limited by the specific application and the quality of the transmission line.
  • To troubleshoot issues with the MAX233CPP+G36, it is recommended to use a logic analyzer or an oscilloscope to monitor the data transmission and reception. Additionally, checking the power supply voltage, the signal integrity, and the PCB layout can help identify the root cause of the issue.
  • Yes, the MAX233CPP+G36 can be used in a multi-point RS-232 configuration, but it requires additional external circuitry to implement the necessary signal multiplexing and demultiplexing. The device can be used as a transceiver in a multi-point configuration, but it is not designed to handle the signal multiplexing and demultiplexing internally.
