MAX2373ETC+T - Analog Devices

Description: 28V Linear Li+ Battery Chargers

Download MAX2373ETC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

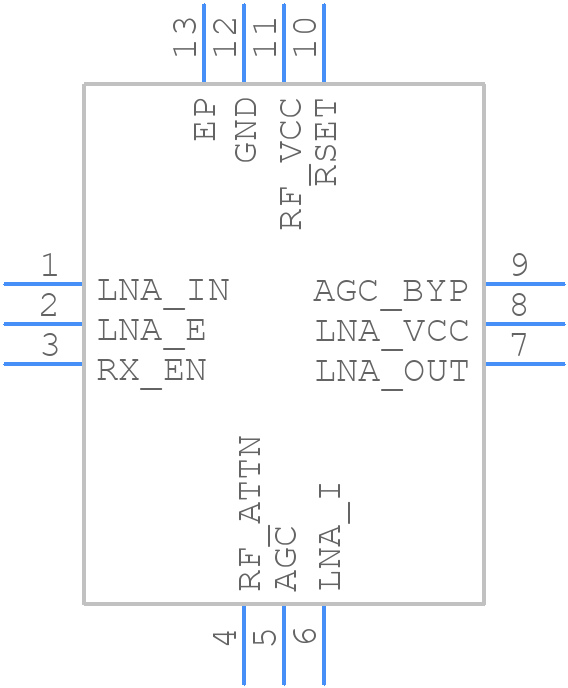

MAX2373ETC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX2373ETC+T - Analog Devices PCB footprint - Other - Other - QFN50P300X300X80-13N
click to zoom
3D Models
MAX2373ETC+T - Analog Devices - 3D model - Other - QFN50P300X300X80-13N
click to zoom

MAX2373ETC+T Details

  • Manufacturer Part Number:

    MAX2373ETC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2002-06-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-609 Code:

    e3

  • RF/Microwave Device Type:

    NARROW BAND LOW POWER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MAX2373ETC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX2373ETC+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the antenna. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the RF signal, a layer for the ground plane, and two layers for the digital signals.
  • The value of the external bias resistor (RBIAS) depends on the desired output power and the voltage supply. A higher value of RBIAS reduces the output power, while a lower value increases it. The recommended value is typically between 1kΩ and 10kΩ. Consult the datasheet and application notes for more information.
  • The MAX2373ETC+T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures. It's recommended to operate the device within the recommended temperature range for optimal performance.
  • To minimize EMI, ensure that the MAX2373ETC+T is properly shielded using a metal shield or a shielded enclosure. Additionally, use a good PCB layout, keep the RF signal traces short, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
  • The recommended power-up sequence for the MAX2373ETC+T is to first apply the voltage supply (VCC) and then the enable signal (EN). This ensures that the device is properly biased and configured before the RF signal is applied.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MAX2373ETC+T Overview

Use the download button to access the MAX2373ETC+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX23, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
