MAX241ECWI+ - Analog Devices

Description: Maxim MAX241ECWI+, Line Transceiver, CCITT V.28/ EIA/TIA-232-E 4-TX 5-RX 4-TRX, 4.5 → 5.5 V, 28-Pin SOIC

Download MAX241ECWI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

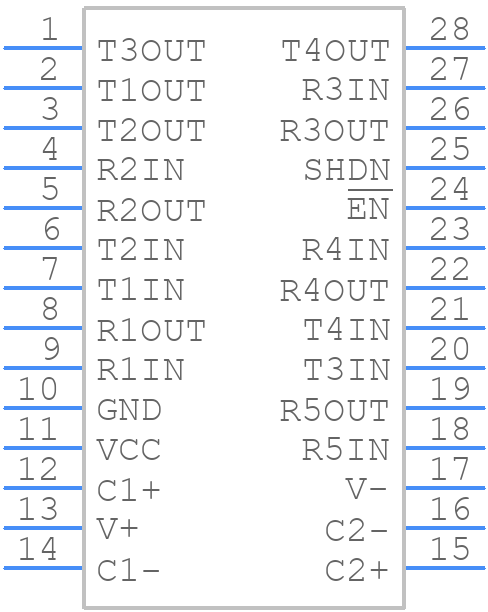

MAX241ECWI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX241ECWI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28 SO-1
click to zoom
3D Models
MAX241ECWI+ - Analog Devices - 3D model - Small Outline Packages - 28 SO-1
click to zoom

MAX241ECWI+ Details

  • Manufacturer Part Number:

    MAX241ECWI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SOIC_W-300_MIL

  • Package Description:

    0.300 INCH, MS-013, SO-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1995-09-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    TRISTATABLE RECEIVERS; EXTERNAL CHARGE PUMP

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; TIA-232-E; V.28

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    10000 ns

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX241ECWI+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX241ECWI+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a shielded cable for the input signal and to keep the input signal path as short as possible.
  • To ensure accuracy over the entire operating temperature range, it's essential to follow proper PCB design and layout guidelines, use a stable power supply, and consider the thermal characteristics of the device. Additionally, calibration and trimming of the device may be necessary to achieve optimal performance.
  • The maximum input signal amplitude that the MAX241ECWI+ can handle without saturating depends on the gain setting and the supply voltage. According to the datasheet, the maximum input signal amplitude is typically around 2.5Vrms for a gain of 1 and 5V supply voltage. However, it's recommended to consult the datasheet and application notes for specific guidance.
  • Yes, the MAX241ECWI+ can be used in a single-supply configuration, but it's essential to ensure that the input signal is within the common-mode range of the device. In single-supply mode, the device's output swing is limited, and the input signal amplitude must be reduced to avoid saturation. Consult the datasheet and application notes for specific guidance on single-supply operation.
  • To troubleshoot common issues with the MAX241ECWI+, start by checking the PCB layout and design for any potential sources of noise or oscillations. Ensure that the power supply is stable and well-regulated, and that the input signal is properly filtered and terminated. Consult the datasheet and application notes for specific guidance on troubleshooting and debugging techniques.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX241ECWI+ Overview

Use the download button to access the MAX241ECWI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX24, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
