Part Image

MAX250CPD+ - Analog Devices

Description: PACKAGE: 14 Lead Plastic DIP

Download MAX250CPD+ Model

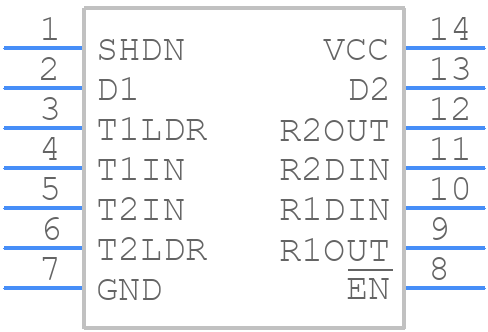

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

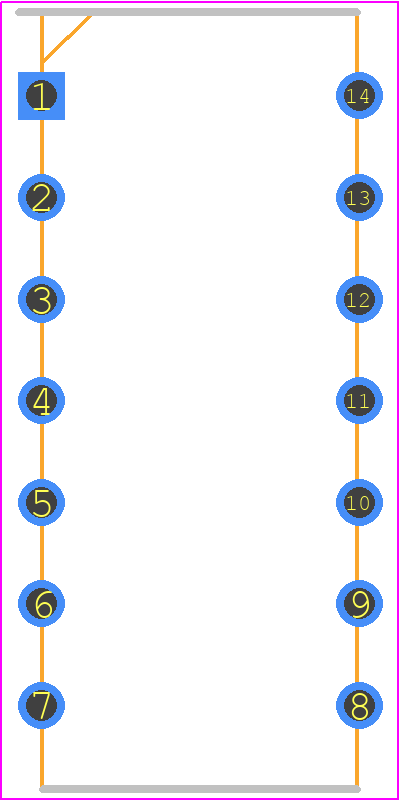

MAX250CPD+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14 Lead Plastic DIP
click to zoom
3D Models
MAX250CPD+ - Analog Devices  - 3D model - Dual-In-Line Packages - 14 Lead Plastic DIP
click to zoom

MAX250CPD+ Details

  • Manufacturer Part Number:

    MAX250CPD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-PDIP-300_MIL

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1989-07-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ISOLATED DATA INTERFACE-PAIRED WITH MAX251; TTL/CMOS LOGIC TO OPTO INTERFACE

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.558 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    1.4 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0032 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    5.72 mm

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX250CPD+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX250CPD+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces as short as possible.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input signals are within the recommended voltage range (0.5V to 4.5V) and that the output load is within the recommended range (1kΩ to 10kΩ).
  • The MAX250CPD+ has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • While the MAX250CPD+ is capable of operating at high frequencies, its performance may degrade above 100MHz due to internal parasitics and layout limitations. For high-frequency applications, it's recommended to consider alternative devices specifically designed for high-frequency operation.
  • To troubleshoot common issues with the MAX250CPD+, start by checking the power supply voltage and ensuring it's within the recommended range. Next, verify that the input signals are within the recommended voltage range and that the output load is within the recommended range. Also, check for any layout issues, such as poor grounding or long traces, that may be contributing to the problem.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX250CPD+ Overview

Use the download button to access the MAX250CPD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX25, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to MAX250CPD+

Showing 0 results

MAX250CPD+ Alternates

Showing results

Image Part Number Model
Part Image MAX250EPD+ Maxim Integrated Products

Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDIP14

Part Image MAX250EPD Rochester Electronics LLC

LINE TRANSCEIVER, PDIP14, PLASTIC, DIP-14

Part Image MAX250EPD Maxim Integrated Products

Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP14

Part Image MAX250CPD Maxim Integrated Products

Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP14
