MAX2510EEI+ - Analog Devices

Description: ♦ +2.7V to +5.5V Single-Supply Operation ♦ Complete Receive Path: 600MHz (max) 1st IF to 30MHz (max) 2nd IF ♦ Unique, Wide-Dynamic-Range Downconverter Mixer Offers -8dBm IIP3, 11dB NF ♦ 90dB Dynamic-Range Limiter with High-Accuracy RSSI Function ♦ Differential Limiter Output Directly Drives CMOS Input ♦ 100MHz to 600MHz Transmit Quadrature Modulator with 41dB Sideband Suppression ♦ 40dB Transmit Gain-Control Range; Up to +1dBm Output Power ♦ Advanced Power Management (four modes) ♦ 0.2µA Shutd

Download MAX2510EEI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

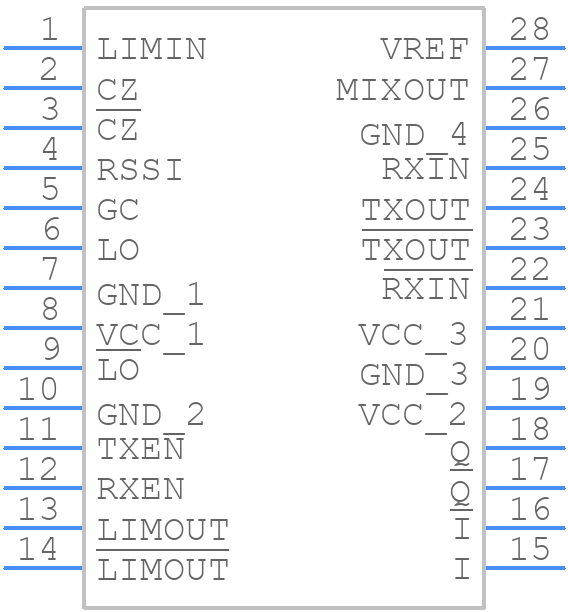

MAX2510EEI+ - Analog Devices - PCB symbol
