MAX25210ATAA8/V+T - Analog Devices

Description: Automotive Ultra Low Quiescent Current Linear Regulator Family

Download MAX25210ATAA8/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

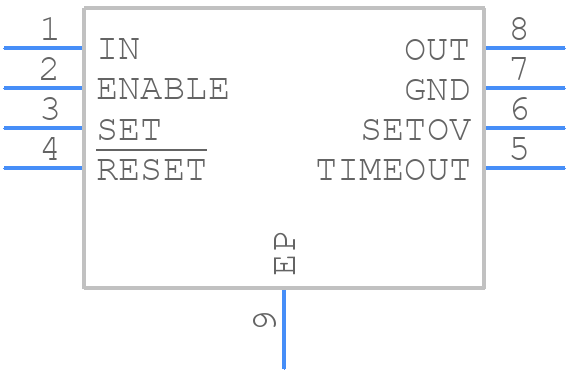

MAX25210ATAA8/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25210ATAA8/V+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T833+2C
click to zoom
3D Models
MAX25210ATAA8/V+T - Analog Devices - 3D model - Small Outline No-lead - T833+2C
click to zoom

MAX25210ATAA8/V+T Details

  • Manufacturer Part Number:

    MAX25210ATAA8/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-09-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Max:

    0.77 V

  • Dropout Voltage1-Nom:

    0.45 V

  • Input Voltage Absolute-Max:

    42 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.001%

  • Load Regulation-Max:

    0.012%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    11 V

  • Output Voltage1-Min:

    0.6 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

MAX25210ATAA8/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX25210 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • The input capacitor values for the MAX25210 depend on the specific application and the input voltage range. A good starting point is to use capacitors with values between 1uF to 10uF, and to choose a capacitor with a voltage rating that is at least 1.5 times the maximum input voltage. It's also important to consider the capacitor's ESR and ESL values to ensure that they do not affect the device's performance.
  • The MAX25210 has an operating temperature range of -40°C to +125°C, but it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To ensure proper power-up and power-down of the MAX25210, it's recommended to follow a specific power-up sequence, where the power supply voltage is applied before the enable signal. During power-down, the enable signal should be turned off before the power supply voltage is removed. Additionally, it's important to ensure that the power supply voltage is stable and within the recommended range before enabling the device.
  • When debugging issues with the MAX25210, it's recommended to start by checking the power supply voltage and ensuring that it is within the recommended range. Next, verify that the input signals are within the specified range and that the device is properly configured. Use an oscilloscope to monitor the output signals and look for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines and contact Analog Devices' technical support if necessary.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX25210ATAA8/V+T Overview

Use the download button to access the MAX25210ATAA8/V+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX25, or try a keyword search, such as Linear Regulator ICs
