MAX25210ATAA9/V+T - Analog Devices

Description: Automotive Ultra Low Quiescent Current Linear Regulator Family

Download MAX25210ATAA9/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

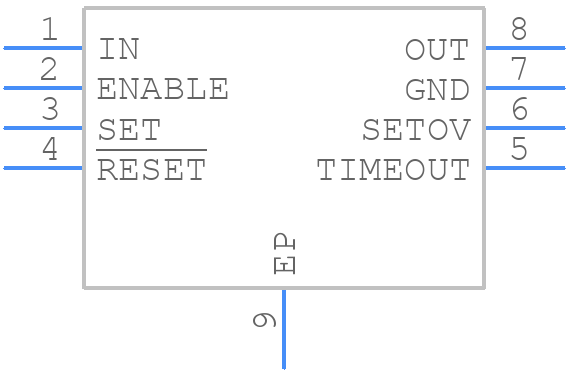

Symbol
MAX25210ATAA9/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25210ATAA9/V+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T833+2C
click to zoom
3D Models
MAX25210ATAA9/V+T - Analog Devices - 3D model - Small Outline No-lead - T833+2C
click to zoom

MAX25210ATAA9/V+T Details

  • Manufacturer Part Number:

    MAX25210ATAA9/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-09-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Max:

    0.77 V

  • Dropout Voltage1-Nom:

    0.45 V

  • Input Voltage Absolute-Max:

    42 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.001%

  • Load Regulation-Max(%):

    0.012%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    11 V

  • Output Voltage1-Min:

    0.6 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

MAX25210ATAA9/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX25210 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • The input capacitor should be chosen based on the input voltage range, ripple current, and ESR requirements. A ceramic capacitor with a value between 1uF to 10uF is typically recommended. The capacitor should also be placed as close as possible to the VIN pin of the device.
  • The MAX25210 is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the MAX25210 is designed to operate in high-vibration environments. However, it's recommended to follow proper PCB design and assembly practices to ensure the device is securely attached to the PCB and can withstand the vibrations. Additionally, the device's performance may be affected by extreme vibrations, so it's recommended to test the device in the specific application environment.
  • To troubleshoot issues with the MAX25210, start by checking the power supply voltage, input voltage, and output voltage. Verify that the device is properly configured and that the input and output capacitors are properly sized. Use an oscilloscope to check for noise and ripple on the output voltage. If the issue persists, consult the datasheet and application notes for further guidance.
