MAX25210ATAB9/V+ - Analog Devices

Description: Automotive Ultra Low Quiescent Current Linear Regulator Family

Download MAX25210ATAB9/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

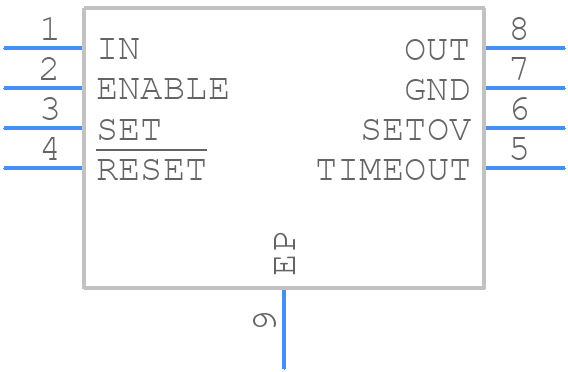

MAX25210ATAB9/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25210ATAB9/V+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T833+2C
click to zoom
3D Models
MAX25210ATAB9/V+ - Analog Devices - 3D model - Small Outline No-lead - T833+2C
click to zoom

MAX25210ATAB9/V+ Details

  • Manufacturer Part Number:

    MAX25210ATAB9/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-09-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX25210ATAB9/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX25210 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence, which is to apply VCC first, followed by VDD. Also, make sure to configure the device's registers according to the datasheet, and use the correct clock frequency and mode.
  • The MAX25210 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to keep the device away from heat sources. Additionally, ensure good airflow around the device and avoid blocking the thermal pads.
  • To troubleshoot issues with the MAX25210, start by reviewing the datasheet and application notes to ensure correct configuration and usage. Use a logic analyzer or oscilloscope to monitor the device's signals and verify that they are within the specified ranges. Also, check for any firmware or software updates that may address known issues.
  • When using the MAX25210 in a high-reliability or safety-critical application, it's essential to follow the recommended design and testing guidelines to ensure the device operates within its specified parameters. Additionally, consider implementing redundancy, error detection, and correction mechanisms to mitigate potential failures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX25210ATAB9/V+ Overview

Use the download button to access the MAX25210ATAB9/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX25, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
