MAX25231ATCA/V+ - Analog Devices

Description: 36V, 1.2A Mini Buck Converter with 3.5?A IQ

Download MAX25231ATCA/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

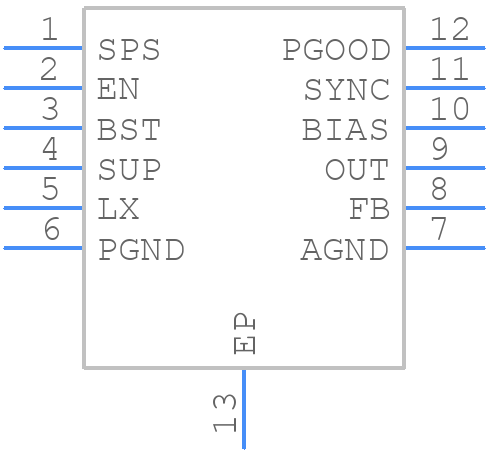

MAX25231ATCA/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25231ATCA/V+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+2C
click to zoom
3D Models
MAX25231ATCA/V+ - Analog Devices - 3D model - Small Outline No-lead - TD1233+2C
click to zoom

MAX25231ATCA/V+ Details

  • Manufacturer Part Number:

    MAX25231ATCA/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-01-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    5.08 V

  • Output Voltage-Min:

    4.87 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    RECTANGULAR

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.01 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2275 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX25231ATCA/V+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX25231ATCA/V+ can be found in the MAX25231 Evaluation Kit documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet to ensure proper layout and routing.
  • To optimize the performance of the MAX25231ATCA/V+, it's essential to follow the recommended layout and routing guidelines, ensure proper power supply decoupling, and optimize the input and output termination. Additionally, Analog Devices provides application notes and design guides that provide specific recommendations for various applications, such as HDMI and DisplayPort.
  • The maximum cable length supported by the MAX25231ATCA/V+ depends on the specific application and the type of cable used. In general, the MAX25231ATCA/V+ can support cable lengths up to 30 meters for HDMI and 15 meters for DisplayPort, but this can vary depending on the specific implementation and the quality of the cable.
  • To troubleshoot issues with the MAX25231ATCA/V+, start by verifying the power supply and clocking configuration. Check the input and output signals using an oscilloscope to ensure proper signal integrity. Also, review the layout and routing to ensure that it meets the recommended guidelines. If issues persist, contact Analog Devices support for further assistance.
  • The MAX25231ATCA/V+ is specifically designed for HDMI and DisplayPort applications, but it can be used in other high-speed digital applications with proper configuration and design. However, it's essential to consult the datasheet and application notes to ensure compatibility and proper operation in non-HDMI and non-DisplayPort applications.
