MAX25232ATCE/V+ - Analog Devices

Description: 36V, 3A Mini Buck Converter with 3.5uA IQ

Download MAX25232ATCE/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

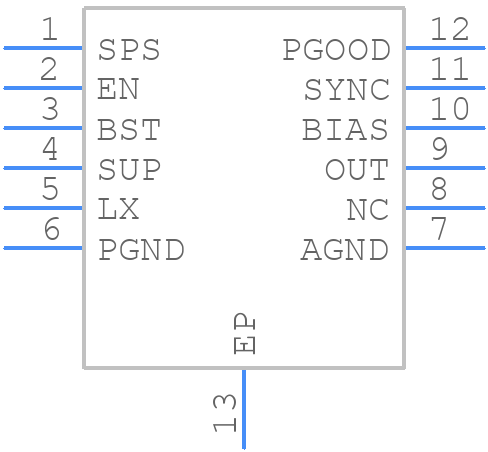

MAX25232ATCE/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25232ATCE/V+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+2C
click to zoom
3D Models
MAX25232ATCE/V+ - Analog Devices - 3D model - Small Outline No-lead - TD1233+2C
click to zoom

MAX25232ATCE/V+ Details

  • Manufacturer Part Number:

    MAX25232ATCE/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-01-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    PWM CONTOL TECHNIQUE ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE SKIP MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    3.37 V

  • Output Voltage-Min:

    3.2 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.008 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    440 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX25232ATCE/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX25232ATCE/V+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the MAX25232ATCE/V+ in a noisy environment, use a low-pass filter on the input signals, use a shielded cable for the input signals, and keep the device away from high-frequency sources. Additionally, use a ferrite bead or a common-mode choke on the power supply lines to reduce noise.
  • The maximum operating temperature range for the MAX25232ATCE/V+ is -40°C to +125°C. However, the device's performance may degrade at temperatures above 85°C, and it's recommended to use a heat sink or a thermal pad to keep the device temperature below 85°C.
  • Yes, the MAX25232ATCE/V+ is AEC-Q100 qualified and can be used in automotive applications. However, it's recommended to follow the guidelines for automotive applications, such as using a dedicated power supply, using a shielded cable for the input signals, and ensuring that the device is properly soldered and mounted.
  • To troubleshoot issues with the MAX25232ATCE/V+, start by checking the power supply voltage, the input signals, and the output signals. Use an oscilloscope to check for noise, distortion, or other anomalies. Check the device's temperature and ensure that it's within the recommended operating range. If the issue persists, consult the datasheet and the application notes, or contact Analog Devices' technical support.
