MAX25232ATCG/V+ - Analog Devices

Description: 36V, 3A Mini Buck Converter with 3.5uA IQ

Download MAX25232ATCG/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

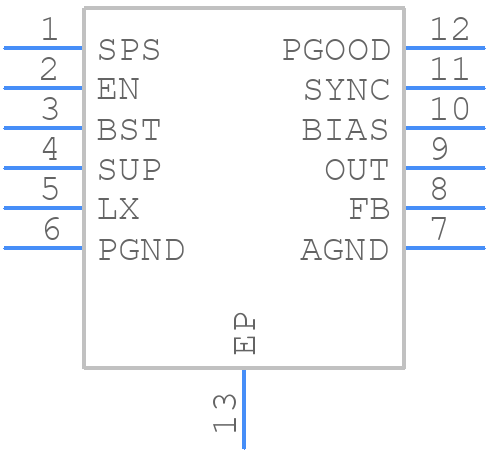

Symbol
MAX25232ATCG/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25232ATCG/V+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+2C
click to zoom
3D Models
MAX25232ATCG/V+ - Analog Devices - 3D model - Small Outline No-lead - TD1233+2C
click to zoom

MAX25232ATCG/V+ Details

  • Manufacturer Part Number:

    MAX25232ATCG/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-01-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    PWM CONTOL TECHNIQUE ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE SKIP MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    10 V

  • Output Voltage-Min:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.01 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2275 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX25232ATCG/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX25232ATCG/V+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power source and the load.
  • To ensure proper power-up and configuration, it's recommended to follow a specific power-up sequence, which involves applying the power supply voltage (VCC) before the input voltage (VIN), and then configuring the device through the I2C interface. Additionally, it's recommended to add a power-on reset circuit to ensure the device is properly reset during power-up.
  • The MAX25232ATCG/V+ can deliver up to 2A of current to the load, depending on the input voltage and the device's configuration. In case of an overcurrent condition, the device has a built-in overcurrent protection (OCP) feature that limits the output current to prevent damage to the device or the load.
  • The MAX25232ATCG/V+ has a built-in input filter that helps to reject input voltage transients and noise. However, it's still recommended to add external filtering components, such as a ferrite bead and a capacitor, to further reduce the impact of input noise on the device's performance.
  • The MAX25232ATCG/V+ has a thermal shutdown feature that helps to prevent overheating. To ensure reliable operation, it's recommended to provide adequate heat sinking, such as a thermal pad or a heat sink, and to follow proper thermal design guidelines to keep the device's junction temperature within the recommended operating range.
