MAX25300BATA/V+T - Analog Devices

Description: 12?VRMS, Low-Noise, 500mA LDO Linear Regulator

Download MAX25300BATA/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

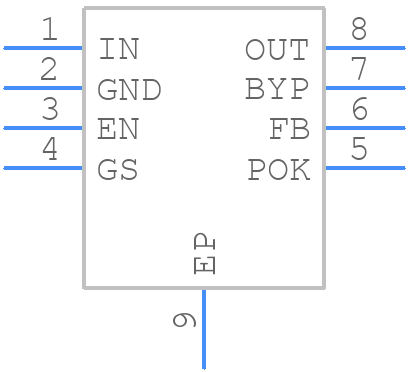

Symbol
MAX25300BATA/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25300BATA/V+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822+3C
click to zoom
3D Models
MAX25300BATA/V+T - Analog Devices - 3D model - Small Outline No-lead - T822+3C
click to zoom

MAX25300BATA/V+T Details

  • Manufacturer Part Number:

    MAX25300BATA/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-01-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.063 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max (%/V):

    0.06

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    5.3 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX25300BATA/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX25300BATA/V+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the battery and other components.
  • The MAX25300BATA/V+T can be configured for different battery chemistries by adjusting the voltage and current limits through the I2C interface. The device has a built-in table of predefined settings for common battery chemistries, and users can also customize these settings to suit their specific needs.
  • The MAX25300BATA/V+T has a fuel gauge accuracy of ±1% over the entire operating range, making it suitable for a wide range of battery-powered applications. The device uses a combination of voltage, current, and temperature measurements to estimate the state of charge of the battery.
  • Yes, the MAX25300BATA/V+T is rated for operation up to 125°C, making it suitable for high-temperature applications such as automotive and industrial systems. However, it's essential to ensure that the device is properly cooled and that the PCB is designed to handle the high temperatures.
  • The MAX25300BATA/V+T has a built-in overcharge protection feature that can be enabled through the I2C interface. When enabled, the device will automatically disconnect the charger when the battery reaches a predetermined voltage level, preventing overcharging and damage to the battery.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX25300BATA/V+T Overview

Use the download button to access the MAX25300BATA/V+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX25, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
