MAX25301AATB/V+T - Analog Devices

Description: 1A Automotive Low-Noise LDO Linear Regulator

Download MAX25301AATB/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

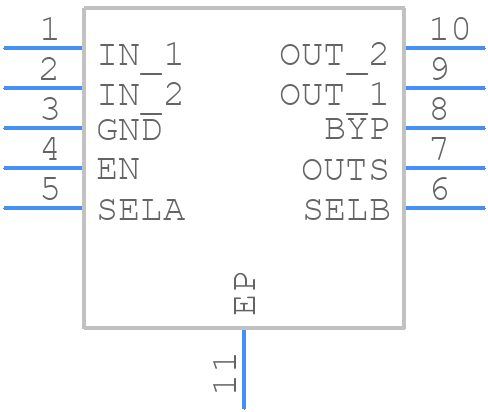

MAX25301AATB/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25301AATB/V+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1033+1C
click to zoom
3D Models
MAX25301AATB/V+T - Analog Devices - 3D model - Small Outline No-lead - T1033+1C
click to zoom

MAX25301AATB/V+T Details

  • Manufacturer Part Number:

    MAX25301AATB/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-01-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.15 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.05

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    5.3 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX25301AATB/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX25301AATB/V+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The MAX25301AATB/V+T requires a single 3.3V or 5V power supply. It's recommended to power the device with a clean, low-noise power source, and to ensure that the power supply is stable before applying any input signals. The power sequencing requirements are not critical, but it's recommended to power up the device before applying any input signals.
  • The MAX25301AATB/V+T can handle input voltages up to 6V without damage, but it's recommended to keep the input voltage within the specified operating range of 0V to 5.5V to ensure optimal performance and reliability.
  • To troubleshoot common issues with the MAX25301AATB/V+T, start by checking the power supply and input signals for noise and stability. Verify that the device is properly powered and that the input signals are within the specified operating range. Check the PCB layout for any signs of noise or EMI, and ensure that the device is properly decoupled. If the issue persists, consult the datasheet and application notes for further troubleshooting guidance.
  • The MAX25301AATB/V+T is rated for operation up to 125°C, but it's recommended to keep the junction temperature below 115°C to ensure optimal performance and reliability. Thermal management requirements include providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device.
