MAX25301BATB/V+ - Analog Devices

Description: 1A Automotive Low-Noise LDO Linear Regulator

Download MAX25301BATB/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

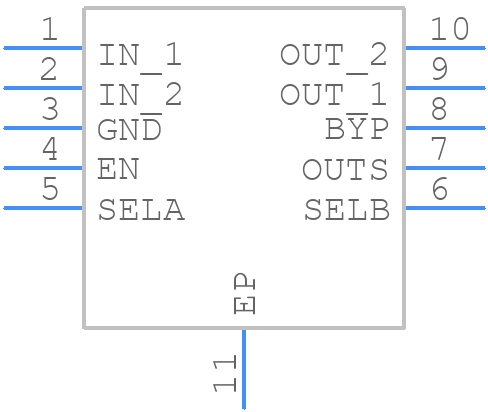

MAX25301BATB/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25301BATB/V+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 21-0137
click to zoom
3D Models
MAX25301BATB/V+ - Analog Devices - 3D model - Small Outline No-lead - 21-0137
click to zoom

MAX25301BATB/V+ Details

  • Manufacturer Part Number:

    MAX25301BATB/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-01-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.15 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.05

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    5.3 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX25301BATB/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX25301BATB/V+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure accurate battery fuel gauging, it's essential to calibrate the device during manufacturing and to compensate for temperature effects. The device should also be configured to match the specific battery chemistry and characteristics. Additionally, the host system should regularly update the device with the battery's state of charge and state of health information.
  • The MAX25301BATB/V+ can operate over a temperature range of -40°C to +85°C, but the device's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.
  • The MAX25301BATB/V+ can be interfaced with a microcontroller using a standard I2C or SPI interface. The device's registers can be accessed and configured using the I2C or SPI protocol, and the device's interrupt output can be connected to the microcontroller's interrupt input to notify the microcontroller of changes in the battery's state.
  • The typical current consumption of the MAX25301BATB/V+ is around 120μA in active mode and 1.5μA in shutdown mode. However, the current consumption can vary depending on the device's configuration, operating frequency, and other factors.
