MAX25301BATB/V+T - Analog Devices

Description: 1A Automotive Low-Noise LDO Linear Regulator

Download MAX25301BATB/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

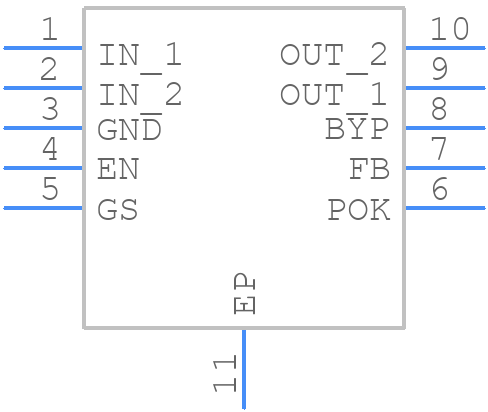

MAX25301BATB/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25301BATB/V+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1033+1C_1
click to zoom
3D Models
MAX25301BATB/V+T - Analog Devices - 3D model - Small Outline No-lead - T1033+1C_1
click to zoom

MAX25301BATB/V+T Details

  • Manufacturer Part Number:

    MAX25301BATB/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-01-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.15 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.05

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    5.3 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX25301BATB/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX25301's performance. It's recommended to follow a 4-layer stack-up with a solid ground plane, keep the input and output traces short and separate, and use a common mode choke to filter the input power. Additionally, place the input capacitors close to the device and use a low-ESR capacitor for the output filter.
  • To ensure the output voltage is stable and accurate, make sure to use a high-quality voltage reference, such as the internal reference or an external precision reference. Also, ensure the input voltage is within the recommended range, and the output capacitor is of high quality and suitable for the output voltage and current.
  • The MAX25301 can handle input voltages up to 40V, but it's recommended to operate within the recommended input voltage range of 4.5V to 36V for optimal performance and reliability.
  • The MAX25301 has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. However, it's still important to add external protection components, such as fuses or PTC resistors, to prevent damage from excessive current or temperature. Also, ensure good thermal design and heat sinking to prevent overheating.
  • The MAX25301 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures, and ensure good thermal design and heat sinking to prevent overheating.
