MAX25302AATD/V+T - Analog Devices

Description: 2A Automotive Low Noise LDO Linear Regulators

Download MAX25302AATD/V+T Model
Schematic
symbols

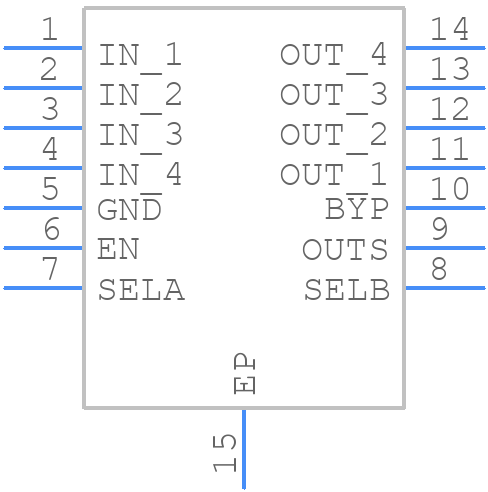

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX25302AATD/V+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T143A3+1C
click to zoom
3D Models
MAX25302AATD/V+T - Analog Devices  - 3D model - Small Outline No-lead - T143A3+1C
click to zoom

MAX25302AATD/V+T Details

  • Manufacturer Part Number:

    MAX25302AATD/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-LFCSP-3X3.5X0.75

  • Package Description:

    TDFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-LFCSP-3X3.5X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-11-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.1 V

  • JESD-30 Code:

    R-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    3.5 mm

  • Line Regulation-Max (%/V):

    0.054

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    5 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX25302AATD/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX25302AATD/V+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper powering and decoupling of the MAX25302AATD/V+T, use a high-quality power supply with low noise and ripple. Decouple the device with a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed as close as possible to the device. Additionally, use a 100nF capacitor to decouple the VCC pin to GND. It's also recommended to use a ferrite bead or a power inductor in series with the power supply to filter out high-frequency noise.
  • The MAX25302AATD/V+T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures. It's essential to ensure that the device is operated within the recommended temperature range to maintain its performance and reliability.
  • To troubleshoot issues with the MAX25302AATD/V+T, start by checking the power supply and decoupling. Ensure that the device is properly powered and decoupled. Then, check the input and output signals using an oscilloscope to identify any anomalies. Verify that the device is configured correctly and that the input signals are within the recommended specifications. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
  • The MAX25302AATD/V+T is a high-reliability device, but it's essential to follow proper design and testing procedures to ensure its reliability and safety in critical applications. Consult the datasheet and application notes, and follow the guidelines for high-reliability and safety-critical designs. Additionally, consider using redundant or fail-safe designs, and perform thorough testing and validation to ensure the device meets the required safety and reliability standards.
