MAX25302BATD/V+T - Analog Devices

Description: 2A Automotive Low Noise LDO Linear Regulators

Download MAX25302BATD/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

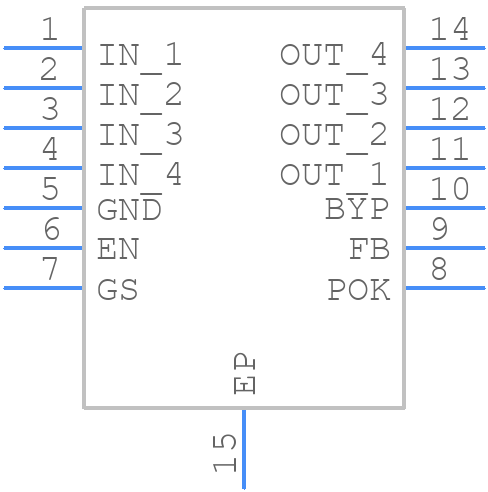

Symbol
MAX25302BATD/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25302BATD/V+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - MAX25302BATD/V+T
click to zoom
3D Models
MAX25302BATD/V+T - Analog Devices - 3D model - Small Outline No-lead - MAX25302BATD/V+T
click to zoom

MAX25302BATD/V+T Details

  • Manufacturer Part Number:

    MAX25302BATD/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-LFCSP-3X3.5X0.75

  • Package Description:

    TDFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-LFCSP-3X3.5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-11-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.1 V

  • JESD-30 Code:

    R-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    3.5 mm

  • Line Regulation-Max (%/V):

    0.054

  • Load Regulation-Max:

    0.032%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    5 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX25302BATD/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX25302's performance. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the decoupling capacitors close to the device.
  • To ensure proper power-up and initialization, make sure to follow the power-up sequence specified in the datasheet, including applying the power supplies in the correct order and waiting for the internal voltage regulators to stabilize before enabling the device.
  • The maximum allowed input voltage for the MAX25302 is 5.5V, which is the absolute maximum rating. However, the recommended operating input voltage range is 4.5V to 5.5V to ensure reliable operation and to prevent damage to the device.
  • To troubleshoot I2C interface issues, check the I2C bus voltage levels, clock frequency, and signal integrity. Ensure that the I2C bus is properly terminated, and that there are no bus conflicts or multiple masters on the bus. Also, verify that the MAX25302 is properly addressed and that the I2C commands are correctly formatted.
  • The MAX25302 has a thermal pad on the bottom of the package, which should be connected to a solid ground plane on the PCB to dissipate heat. Additionally, ensure good airflow around the device, and consider using thermal vias or a heat sink if the device is expected to operate in high-temperature environments.
