MAX25512ATG/V+T - Analog Devices

Description: I2C-Controlled 4-Channel Low-Voltage 120mA LED Backlight Driver with Integrated Boost Converter

Download MAX25512ATG/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

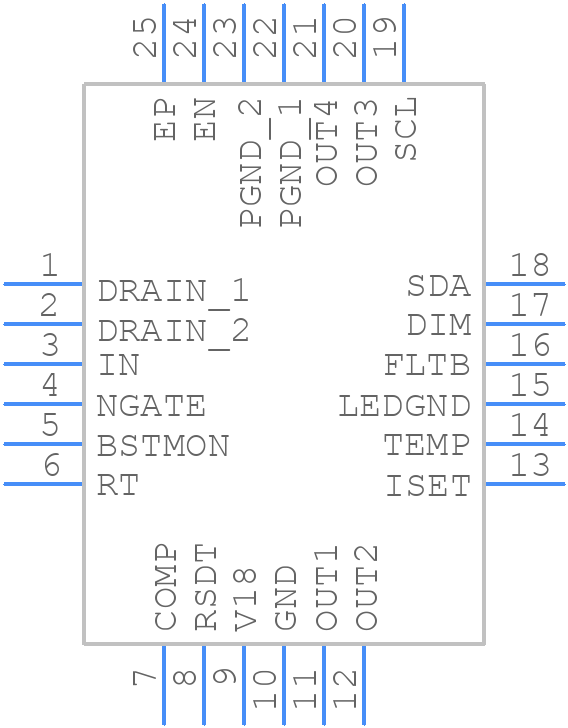

MAX25512ATG/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25512ATG/V+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+4C
click to zoom
3D Models
MAX25512ATG/V+T - Analog Devices - 3D model - Quad Flat No-Lead - T2444+4C
click to zoom

MAX25512ATG/V+T Details

  • Manufacturer Part Number:

    MAX25512ATG/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-06-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    8

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • fmax-Min:

    0.4 MHz

MAX25512ATG/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX25512ATG/V+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper powering and decoupling of the MAX25512ATG/V+T, use a high-quality power supply with low noise and ripple. Decouple the device with a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed as close as possible to the device. Additionally, use a 100nF capacitor to decouple the VCC pin to GND.
  • The MAX25512ATG/V+T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it's essential to ensure proper thermal management to maintain reliability.
  • To troubleshoot issues with the MAX25512ATG/V+T, start by verifying the input voltage, output voltage, and load current. Check the PCB layout and ensure that it meets the recommended guidelines. Use an oscilloscope to measure the output voltage and check for oscillations. Consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The MAX25512ATG/V+T is a high-reliability device, but it's essential to follow proper design and testing procedures to ensure its use in safety-critical applications. Consult the datasheet and application notes for guidance on using the device in high-reliability or safety-critical applications.
