MAX2659ELT+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX2659ELT+T - RF Amplifier, GPS / GNSS, 20.5 dB Gain / 0.8 dB Noise, 1575.42 MHz, 1.6 V to 3.3 V Supply, µDFN-6

Download MAX2659ELT+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

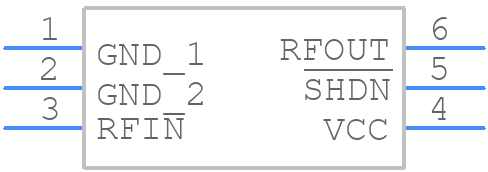

Symbol
MAX2659ELT+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX2659ELT+T - Analog Devices PCB footprint - Other - Other - L611+2
click to zoom
3D Models
MAX2659ELT+T - Analog Devices - 3D model - Other - L611+2
click to zoom

MAX2659ELT+T Details

  • Manufacturer Part Number:

    MAX2659ELT+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-LFCSP-1.5X1X0.75

  • Package Description:

    UDFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-LFCSP-1.5X1X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2007-05-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    16.5 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.04,20

  • Packing Method:

    TR

  • Power Supplies:

    1.8/3 V

  • RF/Microwave Device Type:

    NARROW BAND LOW POWER

  • Supply Current-Max:

    5.6 mA

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Gold/Nickel (Au/Ni)

  • VSWR-Max:

    1.12

MAX2659ELT+T Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling. Use a common-mode choke or a ferrite bead to filter the input power supply.
  • Ensure the input voltage is within the recommended range (2.7V to 5.5V). Use a stable voltage reference (e.g., a voltage regulator) to power the device. Decouple the power supply with a 10uF capacitor and a 100nF capacitor in parallel.
  • The maximum power dissipation is 1.4W. Ensure good thermal conductivity by using a thermal pad or a heat sink. Keep the device away from other heat sources, and use a thermal interface material (e.g., thermal tape or thermal grease) to improve heat transfer.
  • Use an oscilloscope to monitor the input and output signals. Check for proper power supply decoupling, and ensure the input and output impedance matching. Verify the PCB layout and component placement. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the MAX2659ELT+T is qualified for automotive and industrial applications. It operates from -40°C to +125°C. However, ensure you follow the recommended operating conditions and derate the device according to the application notes and datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX2659ELT+T Overview

Use the download button to access the MAX2659ELT+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX26, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
