- Part Number MAX2659ELT/V+T
- Manufacturer Analog Devices
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - L611+2
- Released Date Oct 13, 2020
- Last Modified Date Jan 28, 2026 1:58 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX2659ELT/V+T Details
-
Manufacturer Part Number:
MAX2659ELT/V+T
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
6-LFCSP-1.5X1X0.75
-
Package Description:
UDFN-6
-
Pin Count:
6
-
Manufacturer Package Code:
6-LFCSP-1.5X1X0.75
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
Date Of Intro:
2007-05-09
-
Manufacturer:
Analog Devices Inc
MAX2659ELT/V+T Frequently Asked Questions (FAQs)
-
A good PCB layout for the MAX2659ELT/V+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
-
The MAX2659ELT/V+T requires a bias voltage of 3.3V or 5V on the VCC pin. Ensure that the bias voltage is stable and within the recommended range. Also, make sure to decouple the VCC pin with a 0.1uF capacitor to ground to reduce noise and ensure stable operation.
-
The MAX2659ELT/V+T can handle input powers up to +30dBm (1W). However, it's recommended to operate the device at input powers below +25dBm (0.3W) to ensure optimal performance and reliability.
-
To troubleshoot issues with the MAX2659ELT/V+T, start by checking the input and output signals using an oscilloscope or spectrum analyzer. Verify that the device is properly biased and that the input signal is within the recommended range. Check for any signs of overheating, and ensure that the device is properly soldered and mounted on the PCB. Refer to the datasheet and application notes for more troubleshooting tips.
-
Yes, the MAX2659ELT/V+T is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability and performance. However, it's essential to follow proper design and manufacturing practices to ensure the device operates within its recommended specifications.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MAX2659ELT/V+T Overview

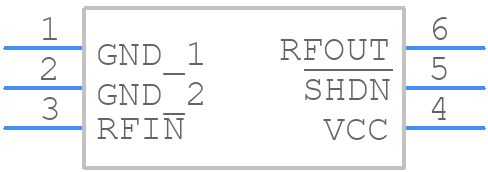

Use the download button to access the MAX2659ELT/V+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX26,
or try a keyword search, such as RF/Microwave Amplifiers
