MAX2750AUA+ - Analog Devices

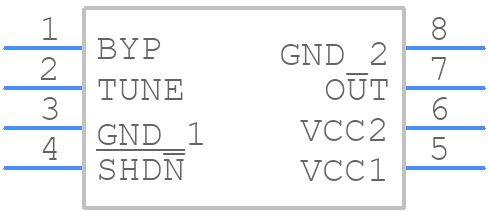

MAX2750AUA+ Details

• Manufacturer Part Number:

  MAX2750AUA+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  8-MINI_SO-N/A

• Package Description:

  LEAD FREE, MINIATURE PACKAGE-8

• Pin Count:

  8

• Manufacturer Package Code:

  8-MINI_SO-N/A

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• Date Of Intro:

  2007-06-28

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Control Voltage-Max:

  2.4 V

• Control Voltage-Min:

  0.4 V

• JESD-609 Code:

  e3

• Modulation Sensitivity:

  1.3 MHz/V

• Mounting Feature:

  SURFACE MOUNT

• Number of Terminals:

  8

• Offset Frequency:

  4000 kHz

• Operating Frequency-Max:

  2470 MHz

• Operating Frequency-Min:

  2370 MHz

• Operating Frequency-Nom:

  2470 MHz

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Oscillator Type:

  VOLTAGE CONTROLLED OSCILLATOR

• Output Power:

  -3 dBm

• Package Body Material:

  PLASTIC/EPOXY

• Package Equivalence Code:

  TSSOP8,.19

• Phase Noise:

  -125 dBc/Hz

• Physical Dimension:

  3.05mm x 3.05mm x 1.1mm

• Qualification Status:

  Not Qualified

• Supply Current-Max:

  21 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.7 V

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed
