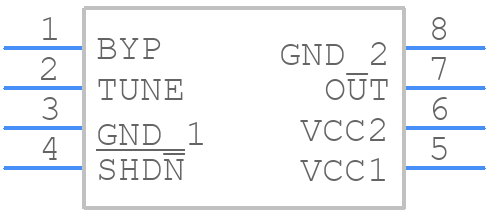

MAX2750EUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX2750EUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+4
click to zoom
3D Models
MAX2750EUA+ - Analog Devices - 3D model - Small Outline Packages - U8+4
click to zoom

MAX2750EUA+ Details

  • Manufacturer Part Number:

    MAX2750EUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2001-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    2.4 V

  • Control Voltage-Min:

    0.4 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    140 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Offset Frequency:

    4000 kHz

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    2400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    -3 dBm

  • Phase Noise:

    -125 dBc/Hz

  • Physical Dimension:

    3.05mm x 3.05mm x 1.1mm

  • Supply Current-Max:

    17 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed
