MAX2754EUA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX2754EUA+ - OSCILLATOR, 1.2GHZ, 5.5V, UMAX-8

Download MAX2754EUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

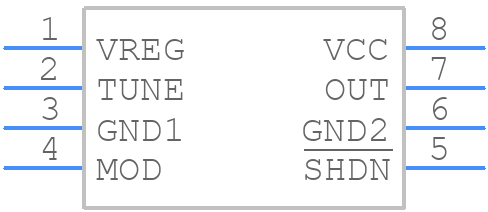

MAX2754EUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX2754EUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0036 8Pin uMax_1
click to zoom
3D Models
MAX2754EUA+ - Analog Devices - 3D model - Small Outline Packages - 21-0036 8Pin uMax_1
click to zoom

MAX2754EUA+ Details

  • Manufacturer Part Number:

    MAX2754EUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2001-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    2.4 V

  • Control Voltage-Min:

    0.4 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    124 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Offset Frequency:

    4000 kHz

  • Operating Frequency-Max:

    1250 MHz

  • Operating Frequency-Min:

    1145 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    -5 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Phase Noise:

    -137 dBc/Hz

  • Physical Dimension:

    3.05mm x 3.05mm x 1.1mm

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MAX2754EUA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX2754EUA+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The MAX2754EUA+ requires a single 2.7V to 5.5V power supply. Ensure that the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors. Also, make sure to follow the recommended power-up sequence.
  • The MAX2754EUA+ can achieve data rates up to 100Mbps, but the actual data rate depends on the specific application, PCB layout, and noise environment. It's recommended to consult the datasheet and application notes for more information.
  • To troubleshoot issues with the MAX2754EUA+, start by checking the power supply, decoupling, and PCB layout. Use an oscilloscope to check the signal integrity and look for signs of noise or distortion. Consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The MAX2754EUA+ is a 3.3V or 5V logic-compatible device, but it can be used with other logic families with proper level shifting. Consult the datasheet and application notes for more information on level shifting and compatibility.
