- Stock & Prices $ Price & Stock for MAX2851ITK+
- Part Number MAX2851ITK+
- Manufacturer Analog Devices
- Pin Count 69
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead

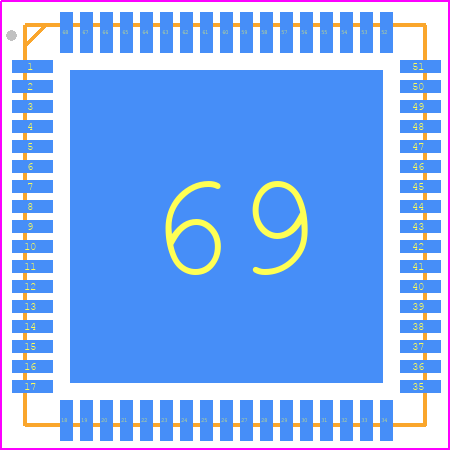

- Footprint Name Quad Flat No-Lead - MAX2851ITK+
- Released Date Oct 5, 2020
- Last Modified Date Nov 14, 2025 4:26 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX2851ITK+ Details
-
Manufacturer Part Number:
MAX2851ITK+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
68-LFCSP-10X10X0.75
-
Package Description:
10 X 10 MM, ROHS COMPLIANT, PLASTIC, TQFN-68
-
Pin Count:
68
-
Manufacturer Package Code:
68-LFCSP-10X10X0.75
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
HTS Code:
8542.39.00.01
-
Date Of Intro:
2010-02-19
-
Manufacturer:
Analog Devices Inc
MAX2851ITK+ Frequently Asked Questions (FAQs)
-
A good PCB layout for the MAX2851ITK+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
-
To optimize the performance of the MAX2851ITK+, consider the following: choose the correct output voltage and current, select the right input and output capacitors, and ensure proper thermal management. Also, consider the operating frequency, input voltage range, and output impedance of your specific application. Consult with Analog Devices' application engineers or refer to the device's evaluation kit for more guidance.
-
The MAX2851ITK+ has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device's junction temperature below 125°C. Use a thermal pad or heat sink to dissipate heat, and avoid blocking airflow around the device. Refer to the device's thermal resistance data in the datasheet to estimate the junction temperature.
-
Yes, the MAX2851ITK+ is suitable for high-reliability and high-temperature applications. It is qualified to the automotive AEC-Q100 standard and has a wide operating temperature range of -40°C to +125°C. However, ensure that your specific application meets the device's recommended operating conditions and that you follow proper design and manufacturing practices to ensure reliability.
-
To troubleshoot issues with the MAX2851ITK+, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Use an oscilloscope to check for oscillations or noise on the output. Consult the device's datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
