MAX2871ETJ+T - Analog Devices

Description: Phase Locked Loops - PLL 23.5MHz to 6000MHz Fractional/IntegerN Synthesizer/VCO

Download MAX2871ETJ+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

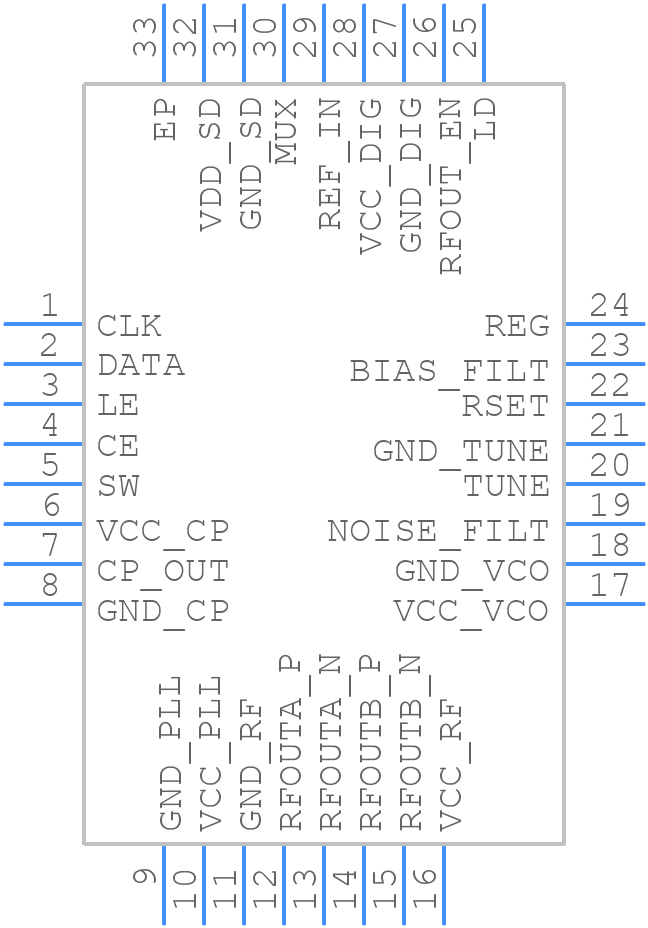

MAX2871ETJ+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX2871ETJ+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T3255+5
click to zoom
3D Models
MAX2871ETJ+T - Analog Devices - 3D model - Quad Flat No-Lead - T3255+5
click to zoom

MAX2871ETJ+T Details

  • Manufacturer Part Number:

    MAX2871ETJ+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2014-09-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX2871ETJ+T Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF signal traces short and away from the digital lines. Use a common mode filter or a Pi-filter to reduce noise and EMI.
  • Use the device's built-in calibration feature to optimize the performance for a specific frequency band. The calibration process involves adjusting the device's internal registers to optimize the performance for the desired frequency band.
  • The MAX2871ETJ+T can handle up to 30dBm of input power. However, the actual power handling capability may vary depending on the specific application and operating conditions.
  • The MAX2871ETJ+T can be interfaced with a microcontroller or FPGA using a standard SPI interface. The device's registers can be accessed and controlled using the SPI interface.
  • The typical current consumption of the MAX2871ETJ+T is around 350mA. However, the actual current consumption may vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX2871ETJ+T Overview

Use the download button to access the MAX2871ETJ+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX28, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
