- Part Number MAX2900ETI+T
- Manufacturer Analog Devices
- Pin Count 29
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - T2855+4
- Released Date Oct 22, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX2900ETI+T Details
-
Manufacturer Part Number:
MAX2900ETI+T
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
28-LFCSP-5X5X0.75
-
Package Description:
5 X 5 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, TQFN-28
-
Pin Count:
28
-
Manufacturer Package Code:
28-LFCSP-5X5X0.75
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
HTS Code:
8542.39.00.01
-
Date Of Intro:
2001-11-27
-
Manufacturer:
Analog Devices Inc
MAX2900ETI+T Frequently Asked Questions (FAQs)
-
A good PCB layout for the MAX2900ETI+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the antenna. Additionally, using a shielded enclosure and keeping the device away from other noise sources can help minimize EMI and noise.
-
To optimize the performance of the MAX2900ETI+T in a specific frequency band, you can adjust the values of the external components such as the input matching network, output matching network, and biasing resistors. You can also use simulation tools such as ADS or Genesys to optimize the performance of the device.
-
The maximum power handling capability of the MAX2900ETI+T is dependent on the specific application and operating conditions. However, according to the datasheet, the device can handle up to 30dBm of input power. It's recommended to consult with Analog Devices' application engineers for specific guidance on power handling.
-
To troubleshoot common issues with the MAX2900ETI+T, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the input and output matching networks are properly designed and implemented. If the issue persists, consult the datasheet and application notes for troubleshooting guides, or contact Analog Devices' technical support for assistance.
-
Yes, the MAX2900ETI+T can be used in a push-pull configuration, which can provide benefits such as improved linearity, increased output power, and reduced distortion. However, this configuration requires careful design and layout consideration to ensure proper operation and to minimize unwanted coupling between the two amplifiers.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MAX2900ETI+T Overview

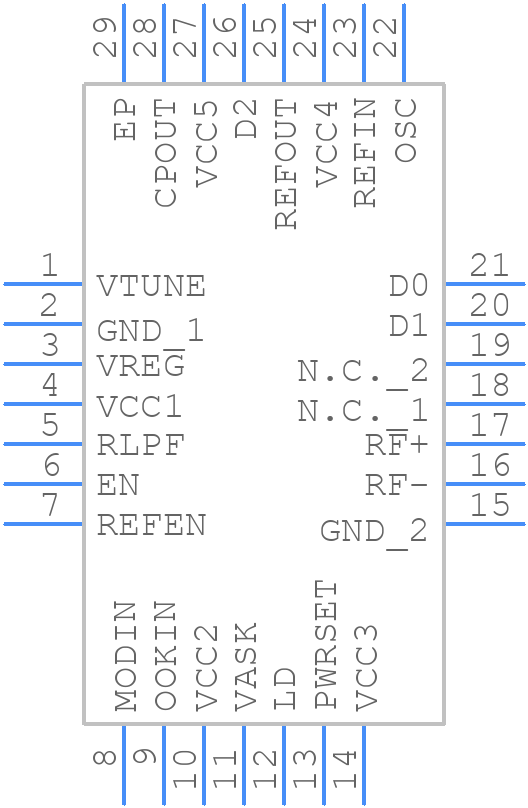

Use the download button to access the MAX2900ETI+T schematic symbol, PCB footprint, and 3D model.
