MAX293EWE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX293EWE+ - Switched Capacitor Filter, Elliptic, Lowpass, 8th, 1, 4.75 V, 11 V, WSOIC

Download MAX293EWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

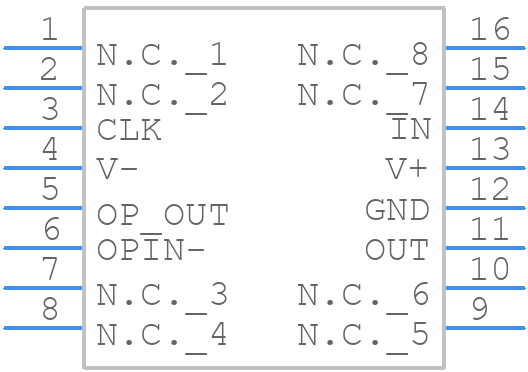

MAX293EWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX293EWE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W16+1-1
click to zoom
3D Models
MAX293EWE+ - Analog Devices - 3D model - Small Outline Packages - W16+1-1
click to zoom

MAX293EWE+ Details

  • Manufacturer Part Number:

    MAX293EWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1992-06-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    25 kHz

  • Center or Cutoff Freq Rng-Min:

    0.0001 kHz

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -2.375 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Order:

    8TH

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    8 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    22 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    ELLIPTIC

  • Width:

    7.5 mm

MAX293EWE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX293EWE+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the device close to the signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure the MAX293EWE+ is properly biased, make sure to provide a stable and noise-free power supply, and follow the recommended voltage and current requirements. Additionally, ensure that the input and output pins are properly terminated, and that the device is operated within its recommended operating temperature range.
  • Common pitfalls to avoid when designing with the MAX293EWE+ include not following the recommended layout and placement guidelines, not providing adequate power supply decoupling, and not properly terminating the input and output pins. Additionally, not accounting for the device's thermal characteristics and not following the recommended operating conditions can also lead to suboptimal performance.
  • To troubleshoot issues with the MAX293EWE+, start by verifying the power supply and input signals, and check for any signs of overheating or physical damage. Use an oscilloscope to verify the output signal and check for any signs of distortion or noise. If the issue persists, consult the datasheet and application notes, and consider seeking support from Analog Devices Inc or a qualified engineer.
  • The MAX293EWE+ has a maximum junction temperature of 150°C, and it's recommended to keep the device below 125°C for optimal performance and reliability. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or heat sinks if necessary. Additionally, follow the recommended operating conditions and avoid exposing the device to extreme temperatures or thermal shocks.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX293EWE+ Overview

Use the download button to access the MAX293EWE+ schematic symbol, PCB footprint, and 3D model.
