MAX30009ENA+ - Analog Devices

Description: Low-Power, High-Performance Bioimpedance Analog Front-End

Download MAX30009ENA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

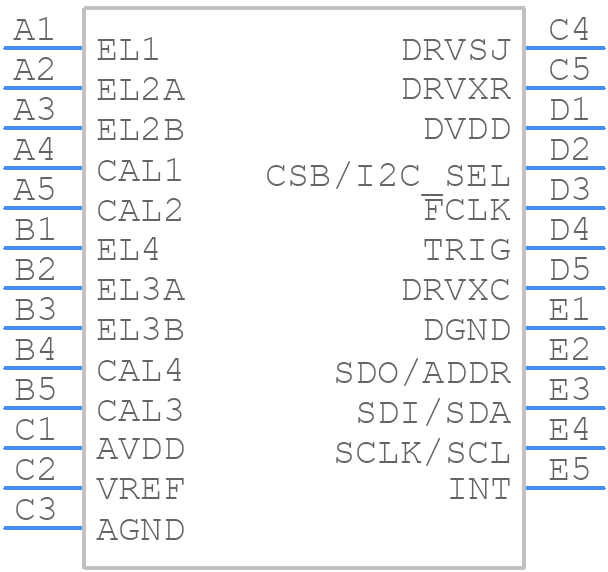

MAX30009ENA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX30009ENA+ - Analog Devices PCB footprint - BGA - BGA - N252C2+1
click to zoom
3D Models
MAX30009ENA+ - Analog Devices - 3D model - BGA - N252C2+1
click to zoom

MAX30009ENA+ Details

  • Manufacturer Part Number:

    MAX30009ENA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    25-WLCSP-N/A

  • Pin Count:

    25

  • Manufacturer Package Code:

    25-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2021-12-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX30009ENA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX30009ENA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the ECG electrodes. A 4-layer PCB with a dedicated analog layer is recommended. Additionally, the device's exposed pad should be connected to the analog ground.
  • To optimize the MAX30009ENA+ for low power consumption, set the device to the lowest possible sampling rate, disable the internal oscillator and use an external clock, and put the device in shutdown mode when not in use. Additionally, use a low-power microcontroller and optimize the firmware to minimize the number of transactions with the MAX30009ENA+.
  • The recommended ECG electrode configuration for the MAX30009ENA+ is a 3-lead or 5-lead configuration, with the device connected to the RA, LA, and LL electrodes. The device can also be connected to a single-lead ECG electrode configuration, but this may require additional circuitry and signal processing.
  • To handle EMI when using the MAX30009ENA+, use a shielded cable to connect the ECG electrodes to the device, and place the device in a shielded enclosure. Additionally, use a common-mode choke and EMI filters on the power supply lines, and ensure that the device is properly grounded.
  • The maximum cable length for the ECG electrodes when using the MAX30009ENA+ depends on the cable type and the system's noise tolerance. As a general rule, keep the cable length as short as possible (less than 1 meter) to minimize noise and interference. If longer cables are required, use shielded cables and consider adding additional noise filtering and signal conditioning.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX30009ENA+ Overview

Use the download button to access the MAX30009ENA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
