MAX3030ECUE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX3030ECUE+ - Transmitter RS422, 3V-3.6V supply, 4 Drivers, TSSOP-16

Download MAX3030ECUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

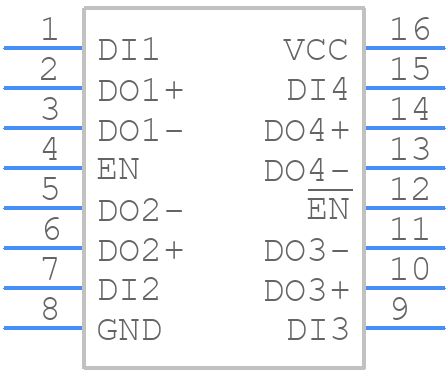

Symbol
MAX3030ECUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3030ECUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U16+2
click to zoom
3D Models
MAX3030ECUE+ - Analog Devices - 3D model - Small Outline Packages - U16+2
click to zoom

MAX3030ECUE+ Details

  • Manufacturer Part Number:

    MAX3030ECUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    4.40 MM, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-422-B; TIA-422-B; V.11

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    2 V

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    16 ns

  • Width:

    4.4 mm

MAX3030ECUE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3030ECUE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the device and the power supply. A 4-layer PCB with a dedicated analog layer is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To optimize the performance of the MAX3030ECUE+ in a noisy environment, use proper shielding, grounding, and decoupling techniques. Ensure that the device is placed away from noise sources, and use a low-pass filter or a ferrite bead to filter out high-frequency noise. Additionally, use a high-quality power supply with a low noise floor, and consider using a noise-reducing capacitor between the power supply and the device.
  • The MAX3030ECUE+ has an operating temperature range of -40°C to +125°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C.
  • Yes, the MAX3030ECUE+ can be used in a battery-powered device. The device has a low quiescent current of 1.2mA, making it suitable for battery-powered applications. However, it's essential to consider the power consumption of the entire system and ensure that the battery life meets the required specifications.
  • To troubleshoot issues with the MAX3030ECUE+, start by verifying the power supply and ensuring that the device is properly connected. Check the input and output signals using an oscilloscope, and verify that the device is operating within the specified voltage range. Consult the datasheet and application notes for troubleshooting guidelines, and consider using a development board or evaluation kit to isolate the issue.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3030ECUE+ Overview

Use the download button to access the MAX3030ECUE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Line Driver or Receivers
