MAX3031ECSE+T - Analog Devices

Description: IC RS-422 TRANSMIT QUAD 16-SOIC

Download MAX3031ECSE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

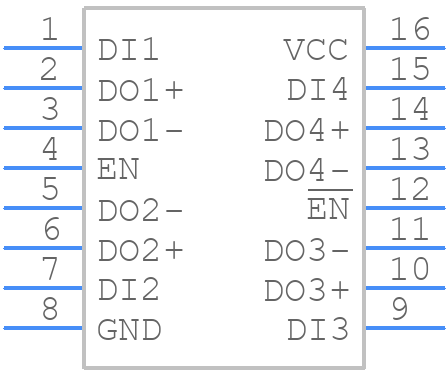

Symbol
MAX3031ECSE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3031ECSE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO
click to zoom
3D Models
MAX3031ECSE+T - Analog Devices - 3D model - Small Outline Packages - 16 Narrow SO
click to zoom

MAX3031ECSE+T Details

  • Manufacturer Part Number:

    MAX3031ECSE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOP,

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-422-B; TIA-422-B; V.11

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    70 ns

  • Width:

    3.9 mm

MAX3031ECSE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3031ECSE+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer to minimize noise and interference.
  • To ensure proper powering and bypassing of the MAX3031ECSE+T, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) between the VCC and GND pins, and place it as close to the device as possible. Additionally, use a separate analog power supply or a well-regulated digital power supply to minimize noise and ripple.
  • The MAX3031ECSE+T has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot common issues with the MAX3031ECSE+T, start by checking the PCB layout and ensuring that the device is properly powered and bypassed. Verify that the input and output traces are short and separate, and that there are no noise sources or interference nearby. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
  • Yes, the MAX3031ECSE+T is suitable for use in high-reliability or safety-critical applications, such as automotive, industrial, or medical devices. However, it's essential to follow proper design and testing procedures to ensure the device meets the required safety and reliability standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3031ECSE+T Overview

Use the download button to access the MAX3031ECSE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Line Driver or Receivers
