MAX3041EUE+ - Analog Devices

Description: RS-422/RS-485 Interface IC A +/- 10kV ESD-Protected, Quad 5V RS-485/RS-422 Transmitters

Download MAX3041EUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

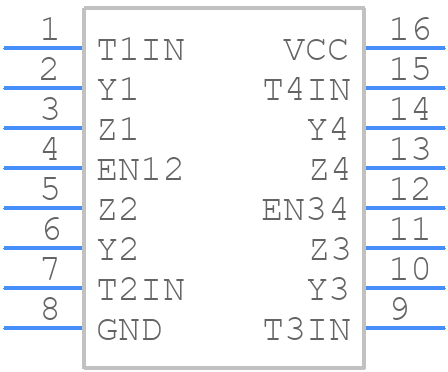

MAX3041EUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3041EUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 SO
click to zoom
3D Models
MAX3041EUE+ - Analog Devices - 3D model - Small Outline Packages - 16 SO
click to zoom

MAX3041EUE+ Details

  • Manufacturer Part Number:

    MAX3041EUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    ULTRA SMALL, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1500 ns

  • Width:

    4.4 mm

MAX3041EUE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3041EUE+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the signal source. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable 3.3V or 5V power supply, and the GND pin to a solid ground plane. The input common-mode voltage should be within the recommended range (0.5V to VCC - 1.5V). Also, ensure that the input signals are within the specified common-mode range to avoid output distortion.
  • The MAX3041EUE+ can support data rates up to 100Mbps, making it suitable for high-speed applications such as USB, SATA, and PCIe. However, the actual data rate may vary depending on the specific application, PCB layout, and signal quality.
  • The MAX3041EUE+ has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing and assembly. Use ESD-safe materials, handle the devices by the body or pins, and avoid touching the pins or leads. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device and the system.
  • Yes, the MAX3041EUE+ is designed for differential signaling applications. It can be used to drive differential signals, such as LVDS, and can also be used as a receiver for differential signals. However, ensure that the input signals are within the specified common-mode range and that the device is properly biased for optimal performance.
