MAX3041EWE+ - Analog Devices

Description: RS-422/RS-485 Interface IC +/-10kV ESD-Protected, Quad 5V RS-485/RS-422 Transmitters

Download MAX3041EWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

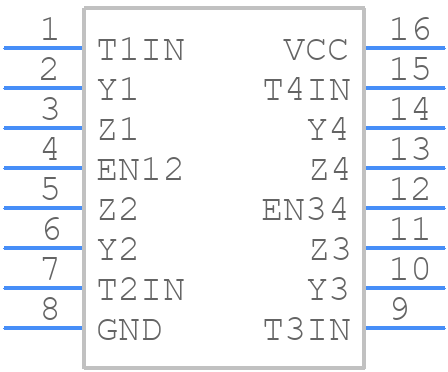

Symbol
MAX3041EWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3041EWE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Wide SO
click to zoom
3D Models
MAX3041EWE+ - Analog Devices - 3D model - Small Outline Packages - 16 Wide SO
click to zoom

MAX3041EWE+ Details

  • Manufacturer Part Number:

    MAX3041EWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1500 ns

  • Width:

    7.5 mm

MAX3041EWE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3041EWE+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the signal source. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable 3.3V or 5V power supply, and the GND pin to a solid ground plane. The device also requires a 0.1uF bypass capacitor between VCC and GND, placed close to the device. Additionally, ensure that the input signals are within the recommended common-mode voltage range.
  • The MAX3041EWE+ is a high-speed RS-232 transceiver that can support data rates up to 1Mbps. However, the actual data rate may be limited by the quality of the transmission line, the signal integrity, and the receiver's capability.
  • No, the MAX3041EWE+ is a point-to-point RS-232 transceiver and is not designed for multi-point applications. It's intended for use in applications where a single transmitter communicates with a single receiver. For multi-point applications, consider using a different device or a repeater.
  • The MAX3041EWE+ has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing and assembly. Use ESD-safe materials, handle the devices by the body, and avoid touching the pins. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device and the system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3041EWE+ Overview

Use the download button to access the MAX3041EWE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
