MAX3044ESE+ - Analog Devices

Description: Maxim MAX3044ESE+ Quad RS-422/ RS-485, Quad Transmitter Differential 5 V, 16-Pin SOIC

Download MAX3044ESE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

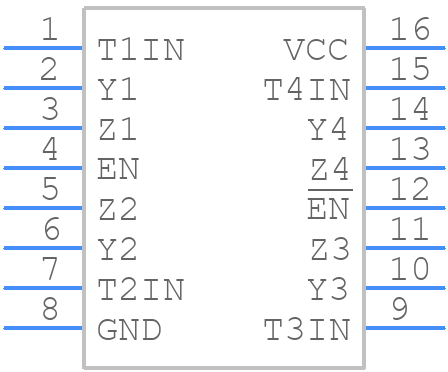

Symbol
MAX3044ESE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3044ESE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX3044ESE+
click to zoom
3D Models
MAX3044ESE+ - Analog Devices - 3D model - Small Outline Packages - MAX3044ESE+
click to zoom

MAX3044ESE+ Details

  • Manufacturer Part Number:

    MAX3044ESE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.300 INCH, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1500 ns

  • Width:

    3.9 mm

MAX3044ESE+ Frequently Asked Questions (FAQs)

  • A good PCB layout practice for the MAX3044ESE+ is to keep the input and output traces short and away from each other, use a solid ground plane, and add decoupling capacitors close to the device. Additionally, it's recommended to use a shielded cable for the RS-485 bus and to keep the cable length as short as possible.
  • To ensure reliable operation in a noisy industrial environment, it's recommended to use a common-mode choke on the RS-485 bus, add TVS diodes for overvoltage protection, and use a shielded enclosure for the device. Additionally, consider using a device with built-in ESD protection, such as the MAX3044ESE+.
  • The maximum cable length supported by the MAX3044ESE+ depends on the data rate and the type of cable used. As a general rule, the maximum cable length is 4000 feet (1219 meters) at a data rate of 100 kbps, and 1000 feet (305 meters) at a data rate of 1 Mbps. However, it's recommended to consult the datasheet and perform tests to determine the maximum cable length for a specific application.
  • Yes, the MAX3044ESE+ can be used in a half-duplex configuration. In this mode, the device can transmit and receive data, but not simultaneously. To enable half-duplex mode, the DE (driver enable) pin should be connected to the RE (receiver enable) pin, and the RO (receiver output) pin should be connected to the DI (driver input) pin.
  • To troubleshoot common issues with the MAX3044ESE+, start by checking the power supply voltage and ensuring that it's within the recommended range. Next, verify that the device is properly configured and that the RS-485 bus is terminated correctly. Use an oscilloscope to check the signal integrity and look for signs of noise or distortion. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3044ESE+ Overview

Use the download button to access the MAX3044ESE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
